Ikegami’s New Optional Recording board for MKC Camera series

Ikegami's New Optional Recording board for MKC Camera series

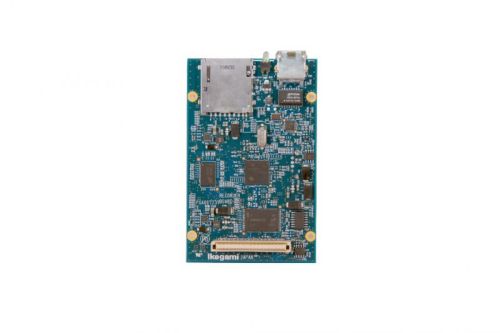

Ikegami has developed on optional Recording board for medical MKC camera series*.
This Recoding board is to record compressed digital videos in USB Memory / USB-HDD and SD Card as video / still image:
* Recording board can be supported by MKC-210HD and MKC / MMC-310HD.

● Full HD 1920 x 1080 video and still image recording
Recording board can record video and still image over Full HD Picture into USB Memory / USB-HDD and SD Card.

● FTP server function for downloading video file
Use to connect the unit to a network and download file.

● Easy control by MKC Camera series
The Recording board can be operated by OSD menu of MKC Camera series.
In addition, it is possible to introduce this Recording board to existing MKC series users in medical fields.

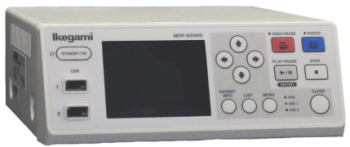

Standalone Full-HD recording unit MDR-600HD

Ikegami’s new released medical video recorder MDR-600HD that can handle simultaneous recording and playback high-quality video and still images.


● Full HD 1920 x 1080 video and still image recording
Full HD 1920 x 1080 video and still image can be recorded simultaneously.
Also, it is possible to simultaneously record up to three media with built-in HDD and two external USB devices.

● Multi-interface
A multi-interface, such as HD/ SD-SDI, DVI-D, LAN and two times of USB is equipped as standard.

● Built-in LCD Monitor
Recording or playback video can be viewed on the 3.5-inch LCD monitor mounted on the front panel.
Also, unit status and remaining data space can be displayed.

● Various Search Feature
Patient data (Date, ID, Name, DOB, Sex) can be input by front button, card reader, barcode reader or keyboard which is connected to USB port.
Also, it can be searched and reproduced very quickly.

● Image Data transfer
This auto forwarding function require instructions provided by your network admin-istrator regarding connections and settings.

● Back-up Power for Momentary stop
Even if the power failure, a short period of time for power retention occur, this function can minimize the data loss.


  Ikegami, we have an extensive track record such as a camera, monitor and recorder to the medical field. These recoding products have enabled general support the video recording. We will continue to propose actively focusing on medical institutions are required.




For more informations please see www.ikegami.de or  contact: medical@ikegami.com
