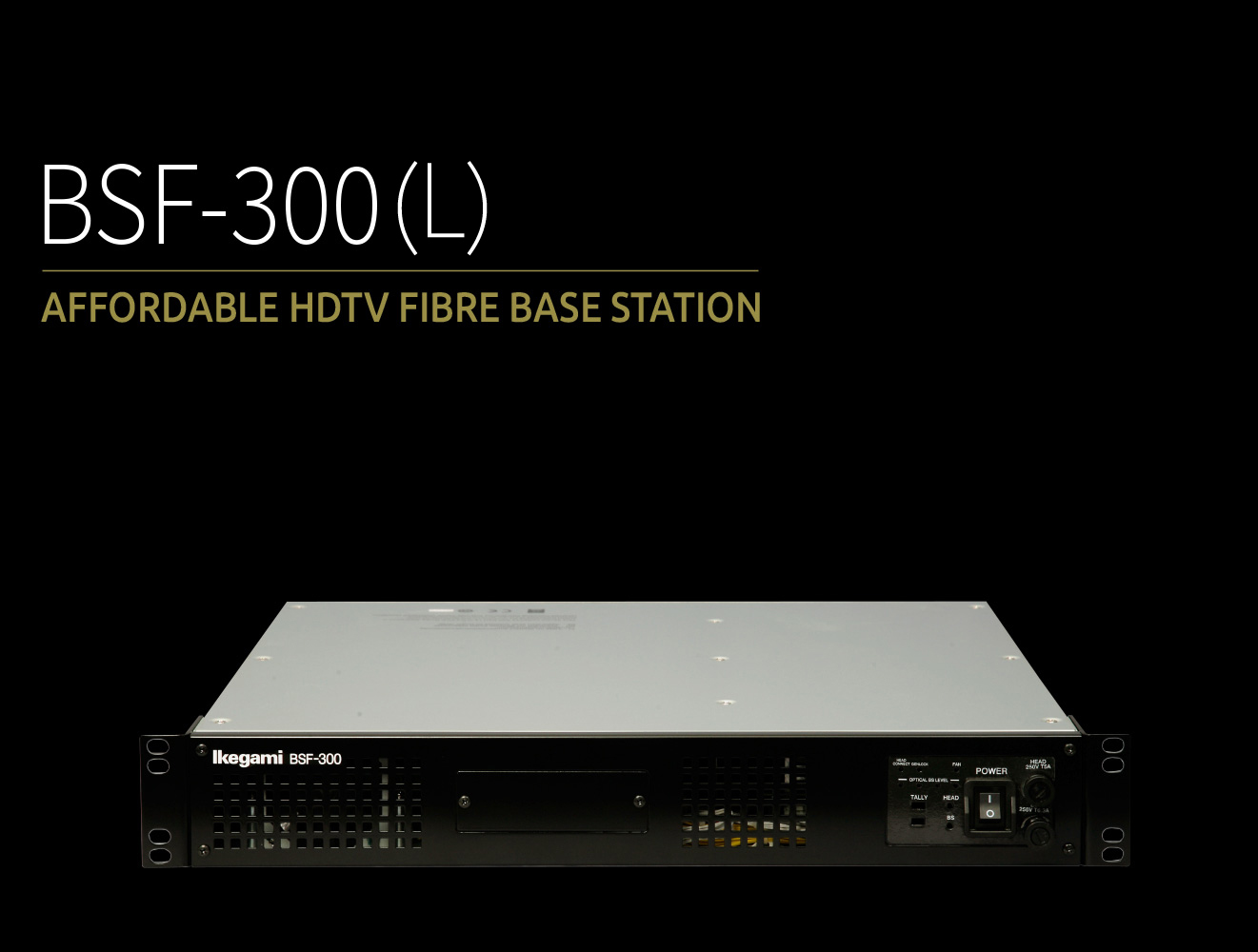

BSF-300
RATINGS

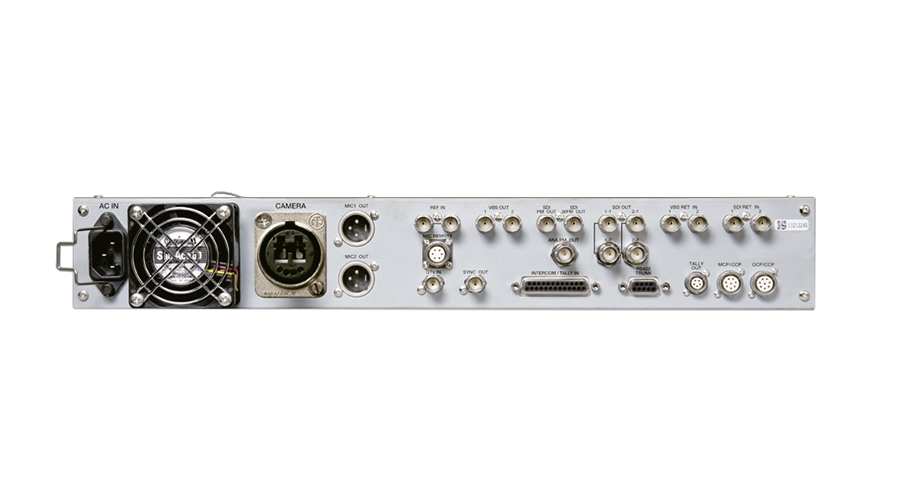

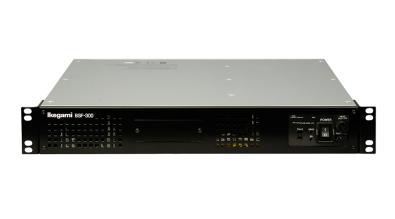

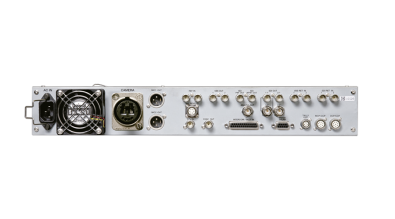

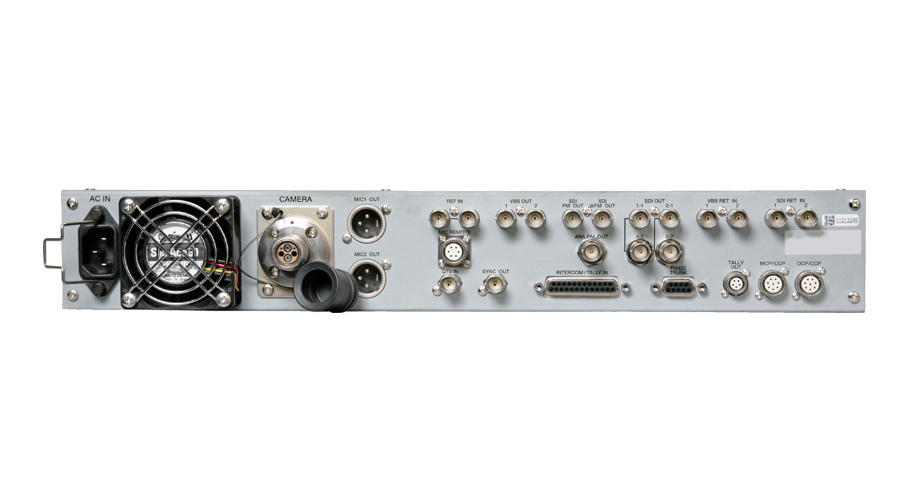

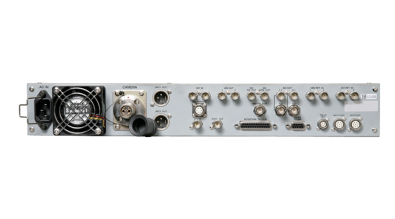

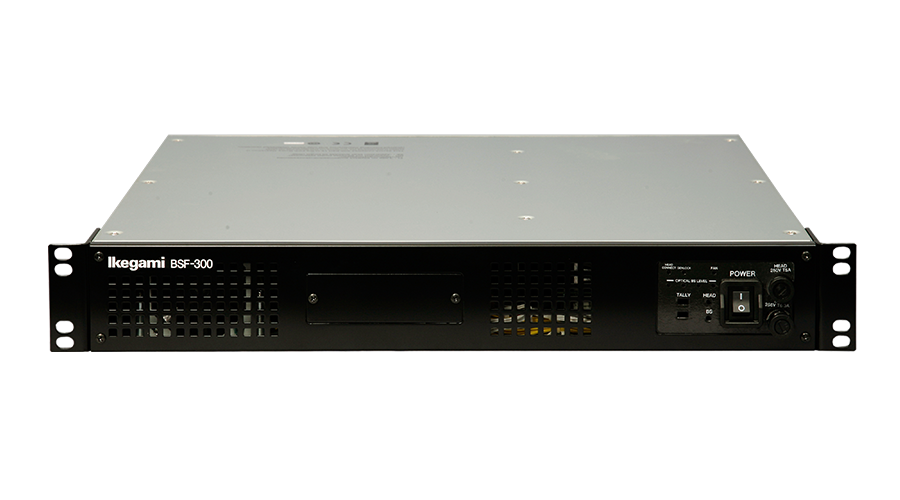

The BSF-300 is a newly designed affordable Base Station transmitting uncompressed high quality pictures over short distances. HDTV (1080 i 50/60, 720 p50/60, 1080 psF25) and SDTV (625 i 50, 575 i 60) formats are supported simultaneously in both, digital and analogue domain. It is available with either a Neutrik Opticon Duo or SMPTE LEMO fibre-hybrid connector.

  • Neutrik optical CON DUO fibre 1.5G or SMPTE (LEMO) Fiber-Hybrid Transmission
  • Maximum Distance 350 m
  • Single fibre Mode up to 10 km
  • HD / SD / VBS Return Video × 4
  • BBS or Tri-Level Genlock
  • Compression and delay free Technology
  • Low Voltage Power Transmission
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form




RELATED ITEMS


up

RATINGS / PERFORMANCE BSF-300
Output Format HDTV 1080 i 50/59.94 YPbPr 4:2:2/720p 50/59.94 YPbPr 4:2:2
Output Format SDTV 576 i 50 YPbPr 4:2:2 & 480 i 59.94 YPbPr 4:2:2
Input Signal Genlock PS 1Vp-p  or Tri-level/75 Ω bridged VBS/BBS 75 Ω bridged
Input Signal Return Video HD/SD BNC 2 ch Select from HD-SDI / SD-SDI
Input Signal Return Video SD (Opt.) BNC 2 ch VBS
Input Signal Q-TV BNC 1 ch VBS
Input Signal Intercom Select from 4-wire / Clearcom / RTS
Input Signal PGM / Tally 2-LINE / R, G
Output Signal 3G / Dual link / HD-SDI BNC 4ch - 4 x HD or 2 x HD & 2 x SD or 4 x SD
Output Signal SD-SDI (option) BNC 2 ch
Output Signal PM BNC 1 ch Select from HD-SDI / SD-SDI / VBS
Output Signal WFM BNC 1 ch Select from HD-SDI / SD-SDI
Output Signal Intercom Select from 4-wire / Clearcom / RTS
Output Signal MIC 0 dBs /+4 dBs 2 ch Low impedance
Output Signal Tally R, G
Dimensions / Weight W 483 x H 66.4 x D 405 mm / approx. 7 kg
