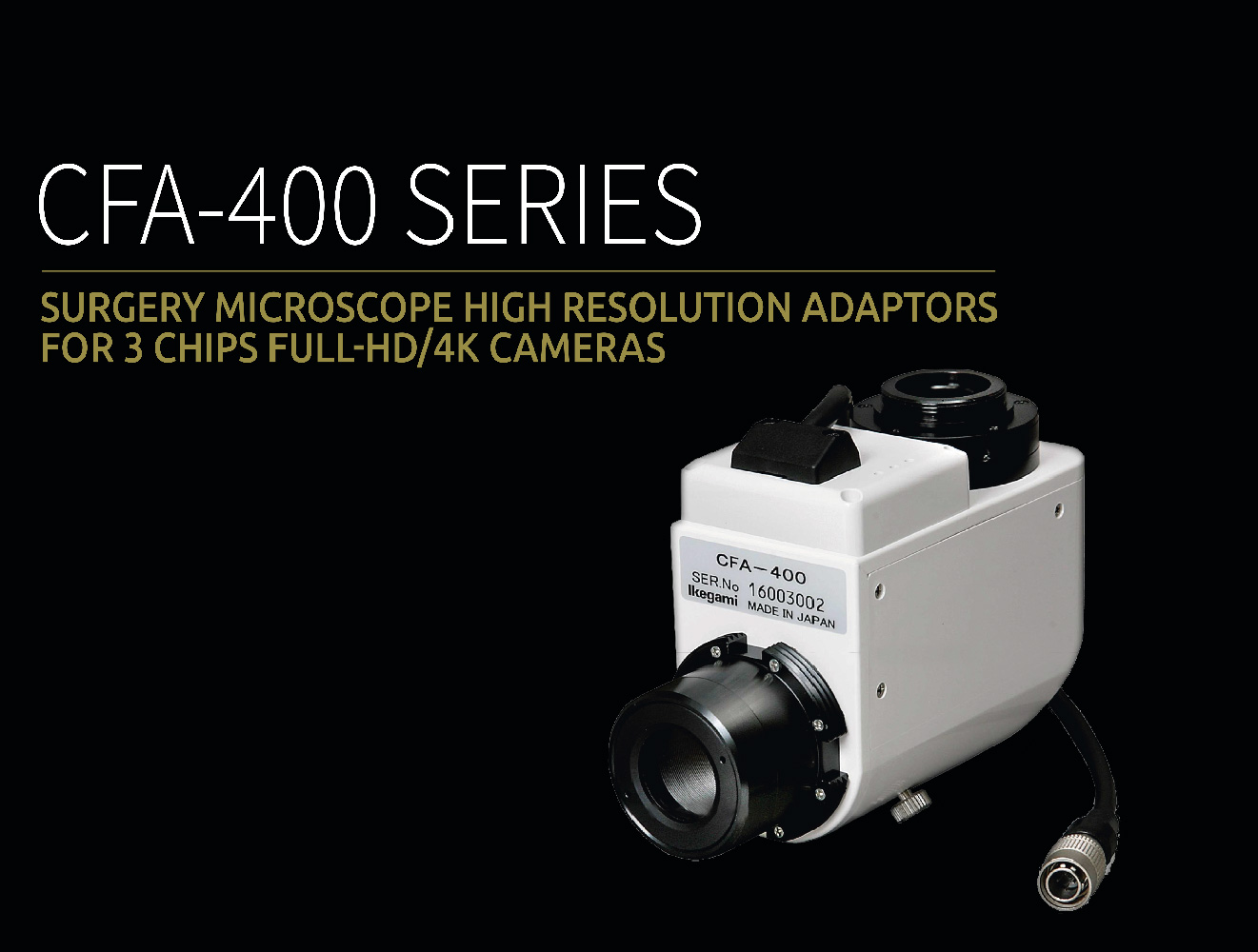

CFA-400R SERIES
RATINGS

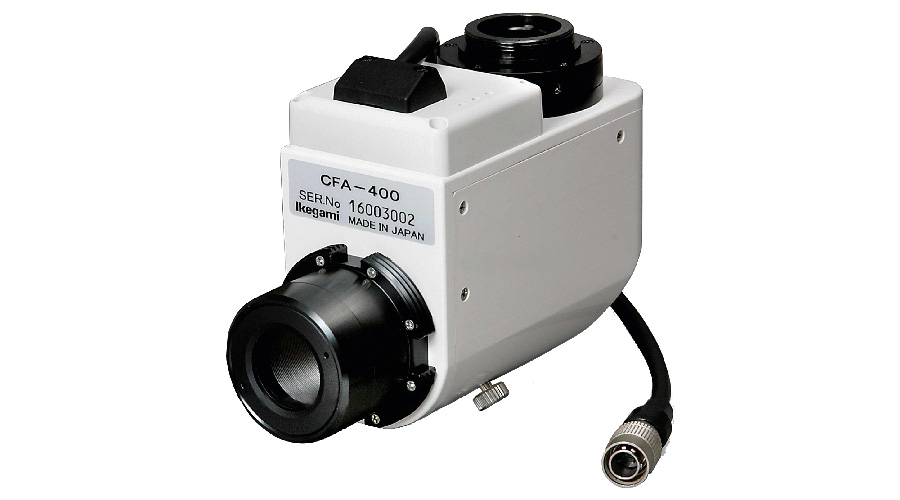

Ikegami has developed new surgery microscope adaptors, CFA-400 series, for 3 chips Full HD (High Definition) and 4K cameras with the higher optical resolution. They equip the optical auto iris function and perform the deeper focus depth with Ikegami MKC camera series.

  • Higher resolution of the optical lens even for 4K cameras
  • The new optical design is developed for the brighter optics
  • The optical iris can be adjusted automatically - contribute to perform deeper focal length
  • Deeper Focal Depth
  • Dedicated Design for 3 Chips Cameras

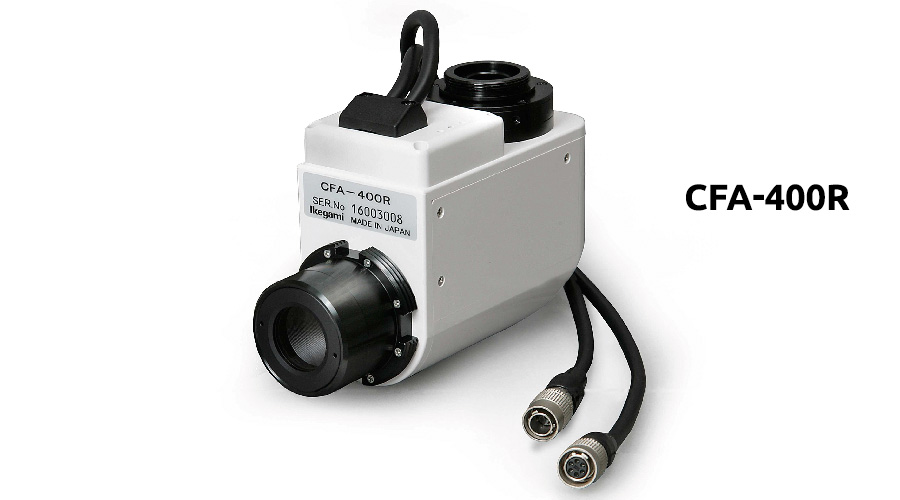

  • The remote controller can easily control the focus adjustment even during the surgery (CFA400R)
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: medical@ikegami.de
Contact Form



up

RATINGS / PERFORMANCE CFA-SERIES
Camera sensor 1/3-inch recommended
1/2.8-inch also available
Lens Mount C-mount
Focal length CFA-400: 53 mm
CFA-400R: 59mm
Iris Power DC 12 V ± 10 %; less than 120 mA
Focus Remote Focus (CFA-400R)
Manual Focus (CFA-400)
X-Y Axis Adjustment Available
Size 113.5 x 79 x 45 mm
Weight 450 g or less
