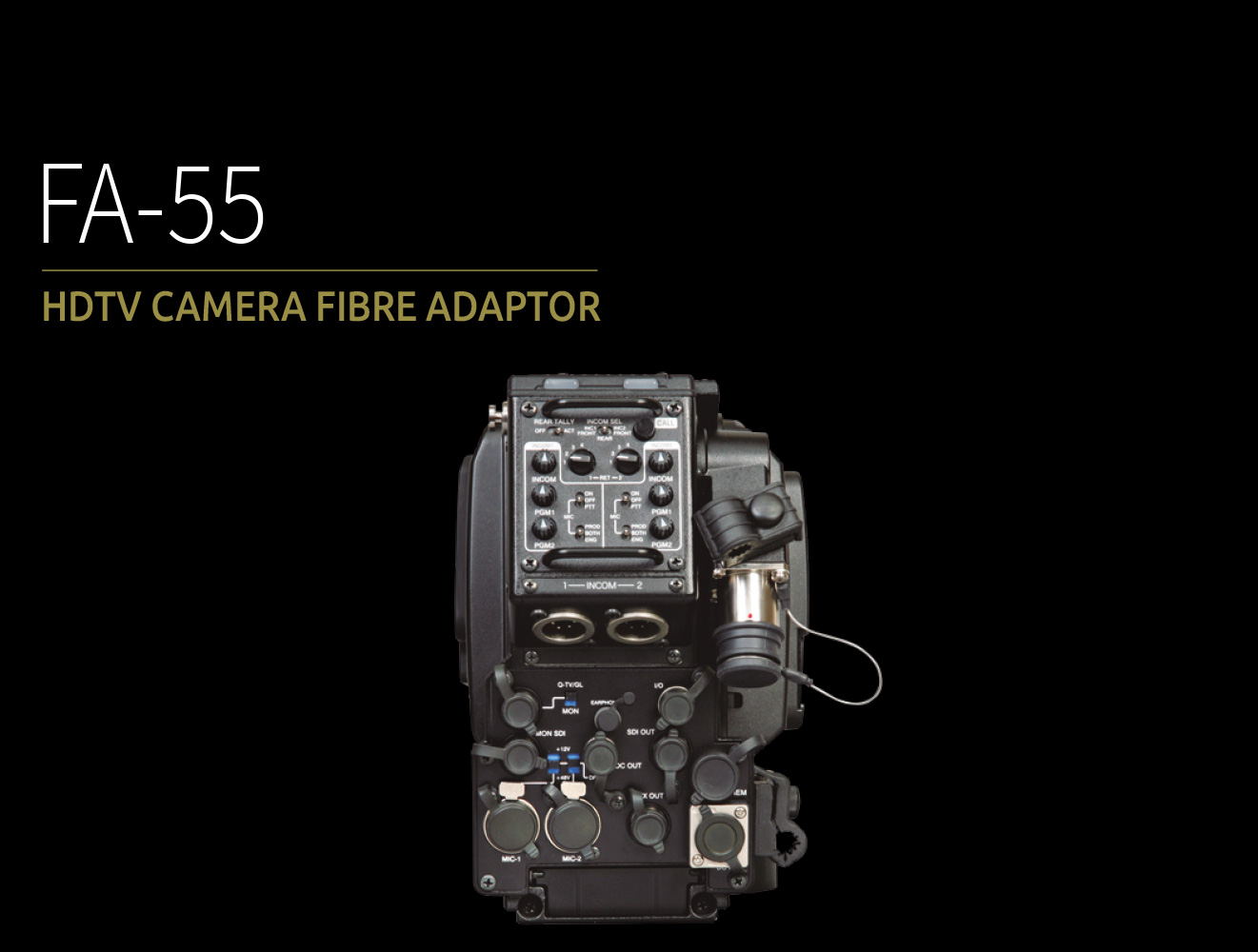

FA-55 - ikegami

BROADCAST > Camera Adaptors > FA-55

GALLERY

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form

RATINGS / PERFORMANCE FA-55
Input Signal External Sync	SYNC 0.6 Vp-p ±6 dB 75 Ω BNC 1 ch
Input Signal Audio	-60dB to +4dB (variable) / -20dB (fixed) 2 ch (600 Ω balanced)
Input Signal Intercom	XLR Type or 110 Type CN 2 ch
Output Signal HD-SDI	Serial Digital 75 Ω 1 ch
Output Signal Analog Video	R, G, B D-Sub CN 1ch (for System Expander)
Output Signal AUX-Out	VBS signal 1 ch (QTV-1, QTV-2 or Main video selectable by menu)
Output Signal Q-TV	VBS signal 1 ch
Output Signal Monitor Video	VF / RET / MON (MENU Selection) Serial Digital 75 Ω BNC 1 ch
Output Signal Intercom	0 dBs 4 ch (ENG / PROD / PGM1 / PGM2) XLR Type or 110 Type CN
Output Signal DC-Out	+12VDC 500 mA (max.) 4-pin type 1 ch
