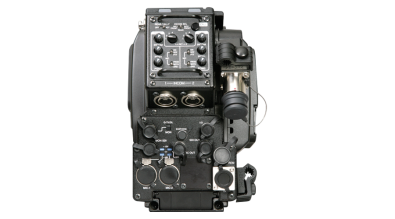

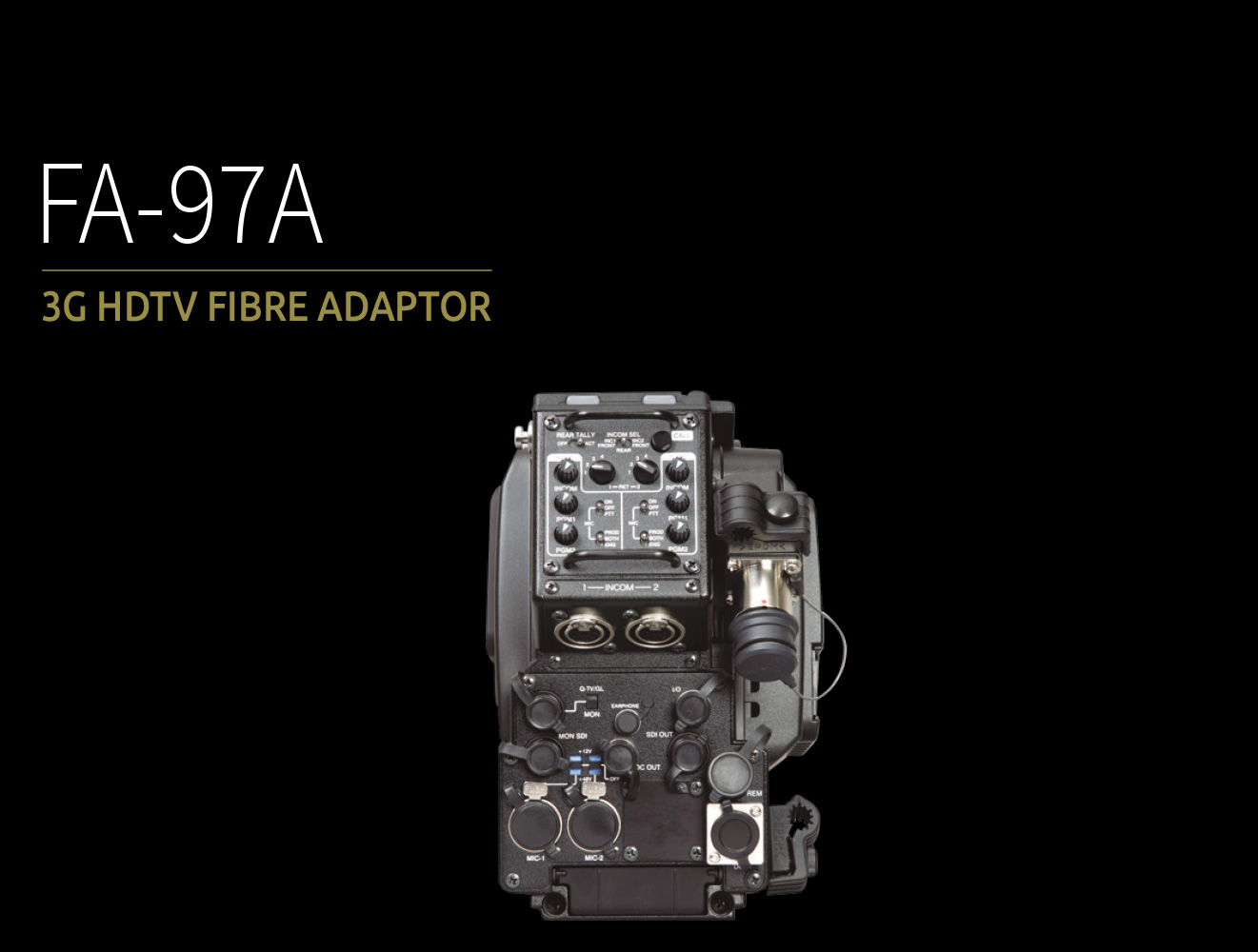

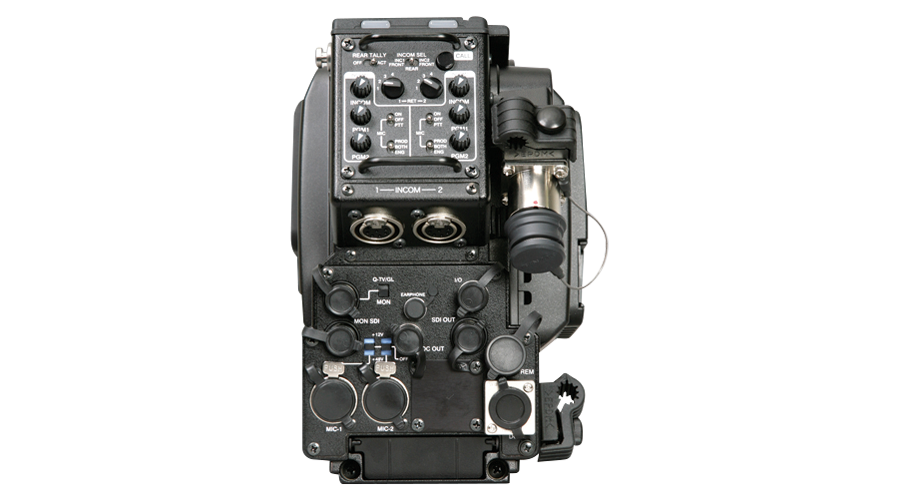

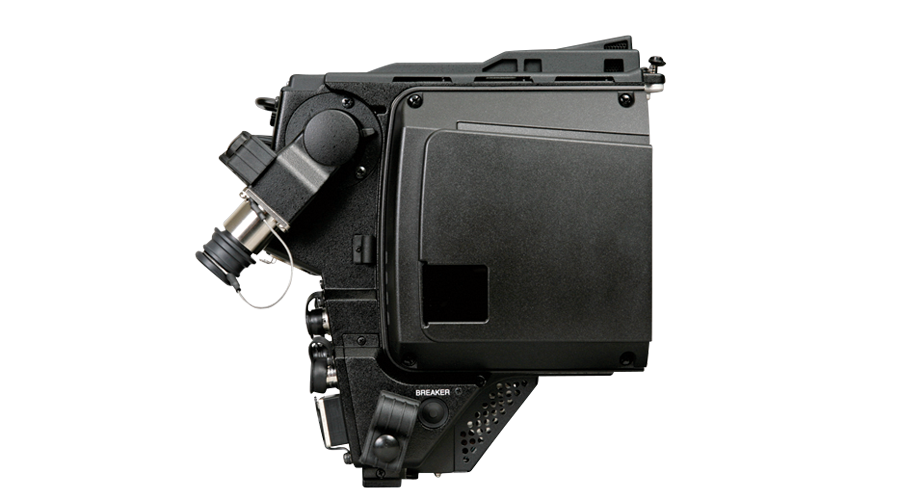

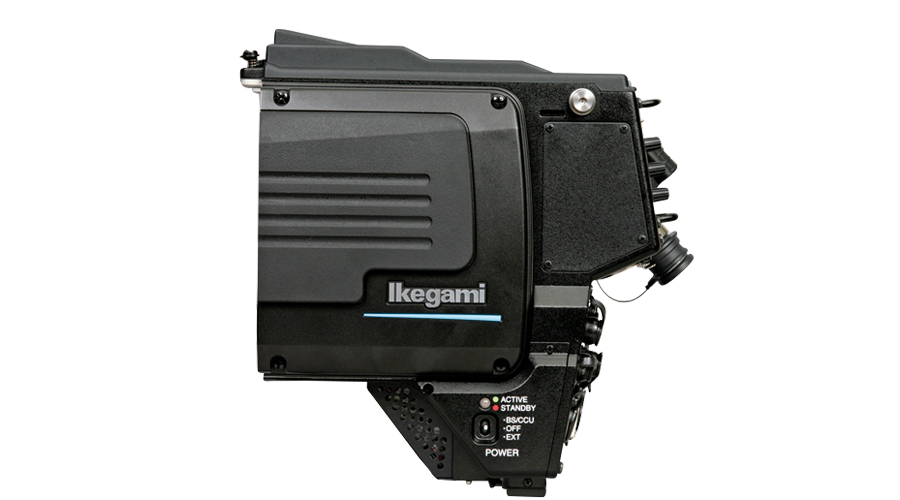

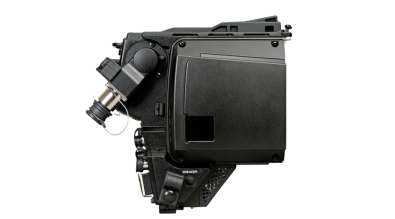

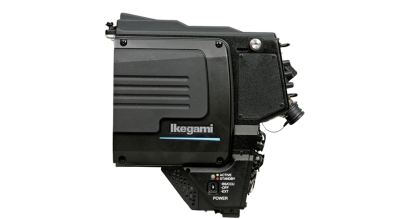

FA-97A
RATINGS


Fiber Adaptor for UNICAM-HD camera series (for 1080i/p or 720P frame rates). To be connected to BSX-100H or BSX-100M control units. The wider bandwidth of FA-97A allows even to transmit 1080i signals at double speed or in full 4:4:4 color sampling.

You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form




RELATED ITEMS


up

RATINGS / PERFORMANCE FA-97A
Input Signal External Sync SYNC 0.6 Vp-p ±6 dB 75 Ω BNC CN 1 ch (BB / PS Signal)
Input Signal Audio -60 dB to +4 dB (variable) / -20 dB (fixed) XLR CN 2 ch
(600 Ω balanced)
Input Signal Video Trunk Serial Digital 75 Ω BNC 1 ch (Option))
Output Signal 3G-SDI/HD-SDI Serial Digital 75 Ω BNC 1 ch
Output Signal Analog Video R, G, B D-Sub CN 1 ch (for System Expander)
Output Signal Q-TV VBS signal 1 ch
Output Signal HD Q-TV* Serial Digital 75 Ω BNC 1 ch (Option)
Output Signal Monitor Video (1.5G) VF / RET / MON (MENU Selection)
Serial Digital 75 Ω BNC 1 ch or
VF / RET / MON / HD Q-TV (MENU Selection)
Serial Digital 75 Ω BNC 1 ch (factory option)
*Optional HD Q-TV (Trunk) module should be installed in CCU
Output Signal Intercom 0 dBs 4 ch (ENG / PROD / PGM1 / PGM2) XLR Type or 110 Type CN
