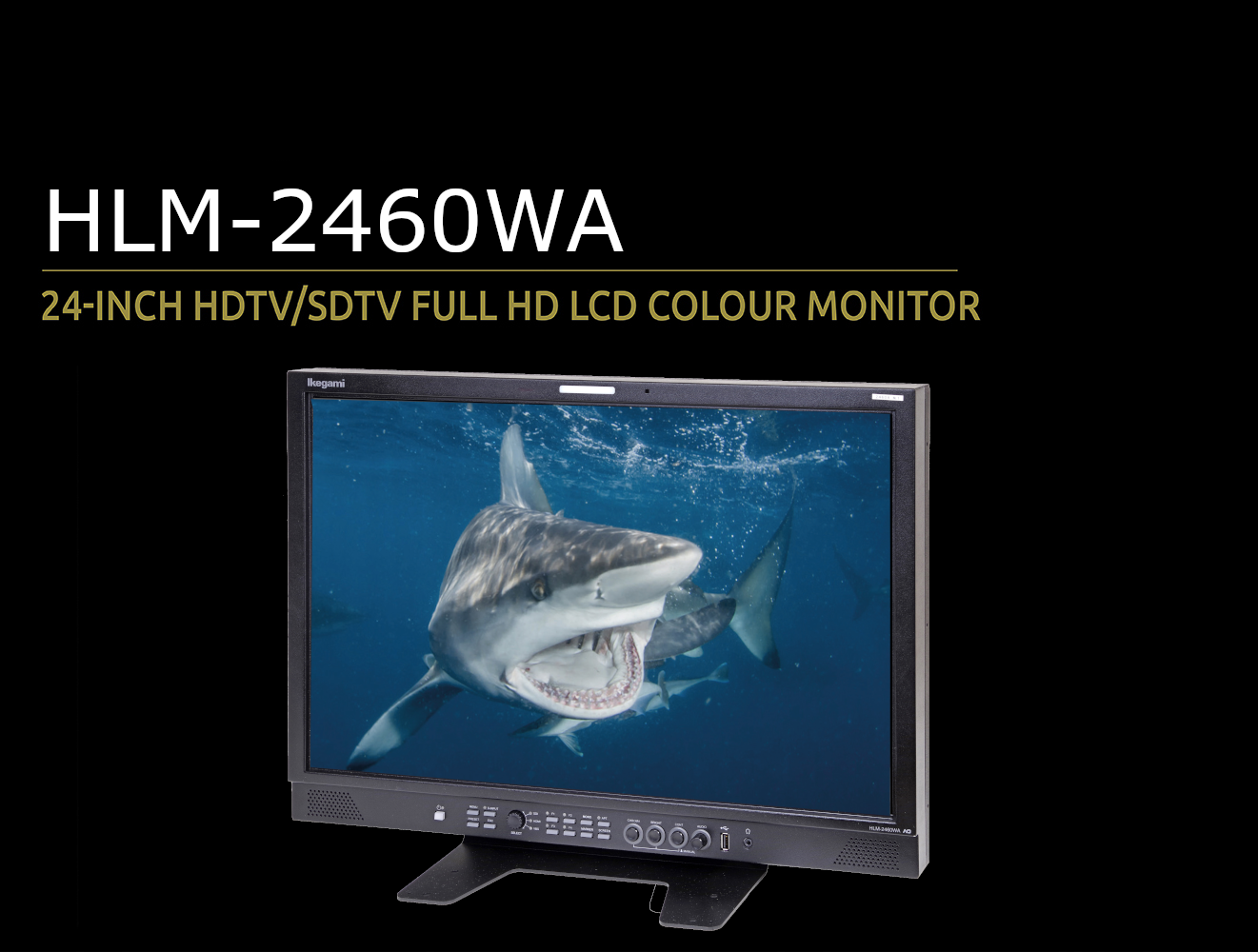

HLM-2460WA [NEW]

Building on the renowned features and performance of its predecessor, the HLM-2460WA reproduces more accurate dynamics of the source images thanks to a newly-developed LCD panel with an impressive 1800:1 contrast ratio. Seamless tally integration via Ethernet is made possible by the support of the TSL V5.0 protocol. The HLM-2460WA fits into various broadcast workflow applications, including editing suites where a computer-friendly WUXGA display resolution is preferred, as well as monitor walls, among others.

By employing a Full 1920×1200 pixel LCD panel which has wide viewing angle, high brightness, high contrast, fast motion response, and high quality colour reproduction, the HLM-2460W achieves real pixel allocation without resizing. Its superb gradation characteristics also make it ideal for a wide range of broadcast applications, including use in monitor walls.

Convenient features such as Picture-In-Picture, Side-By-Side Video, Audio Meters, User Markers and R/G/Y Tally make the Ikegami HLM monitor series the ideal companion for broadcast productions.

The 60 series Monitors support HDR (High Dynamic Range) EOTF tables of HLG1, HLG2 and S-Log3 as an option in addition to conventional Gamma.

• High Performance Liquid Crystal Panel
• Compatibility with embedded Audio
• Built-in Marker Function
• User Marker Display Function
• Shadow Function
• Remote Control via Ethernet or RS-485
• Various built-in Test Signals
• Waveform Monitor/Vectorscope Display Functions
• Timecode Display Function
• 2-picture Split Display & Picture-In-Picture Mode
• Dot-by-Dot Display Function
• Auto Setup with supported probes (Konica Minolta CA-310/-410, Klein Optical Instruments INC K10-A, Jeti Technische Instrumente GmbH Specbos 1211-2)
• 5.1ch Surround Down-Mix Output
• Image & Test Signal MIX Functions
• 2x/4x Zoom Function
• IMD/UMD:TSL V3.1 & V5.0 Support
• High Dynamic Range support (Factory-option)

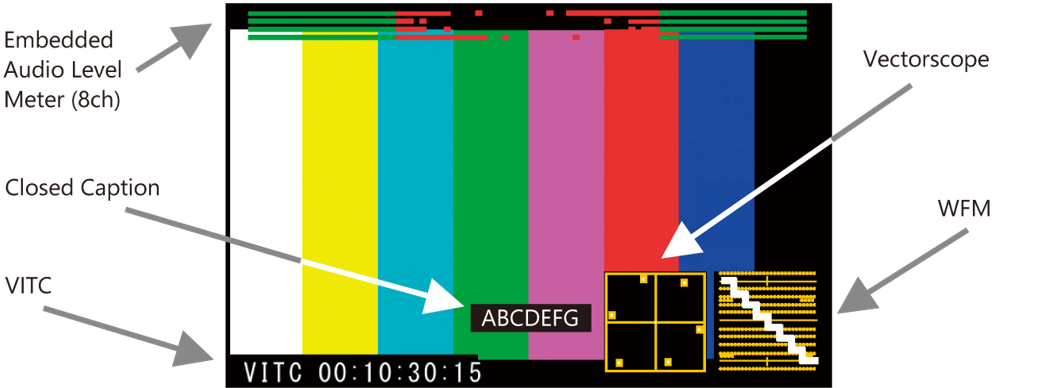

Loaded with Information Display

The HLM-2460WA supports dynamic and static UMD in addition to the features shown below.

User Defined Markers

A program production aid allowing up to 12 lines or boxes to be displayed. These can be drawn easily using a USB mouse.

Automatic Calibration (Optional)

Optional AWC software ensures consistent and accurate color reproduction over time. By acquiring real-time measurement data via a colorimeter, Windows-based software automatically aligns the R/G/B gain to exhibit the correct white balance.

Compatible Colorimeters:
Konica Minolta CA-310 / CA-410
JETI Specbos 1211-2
Klein Instruments K10-A
