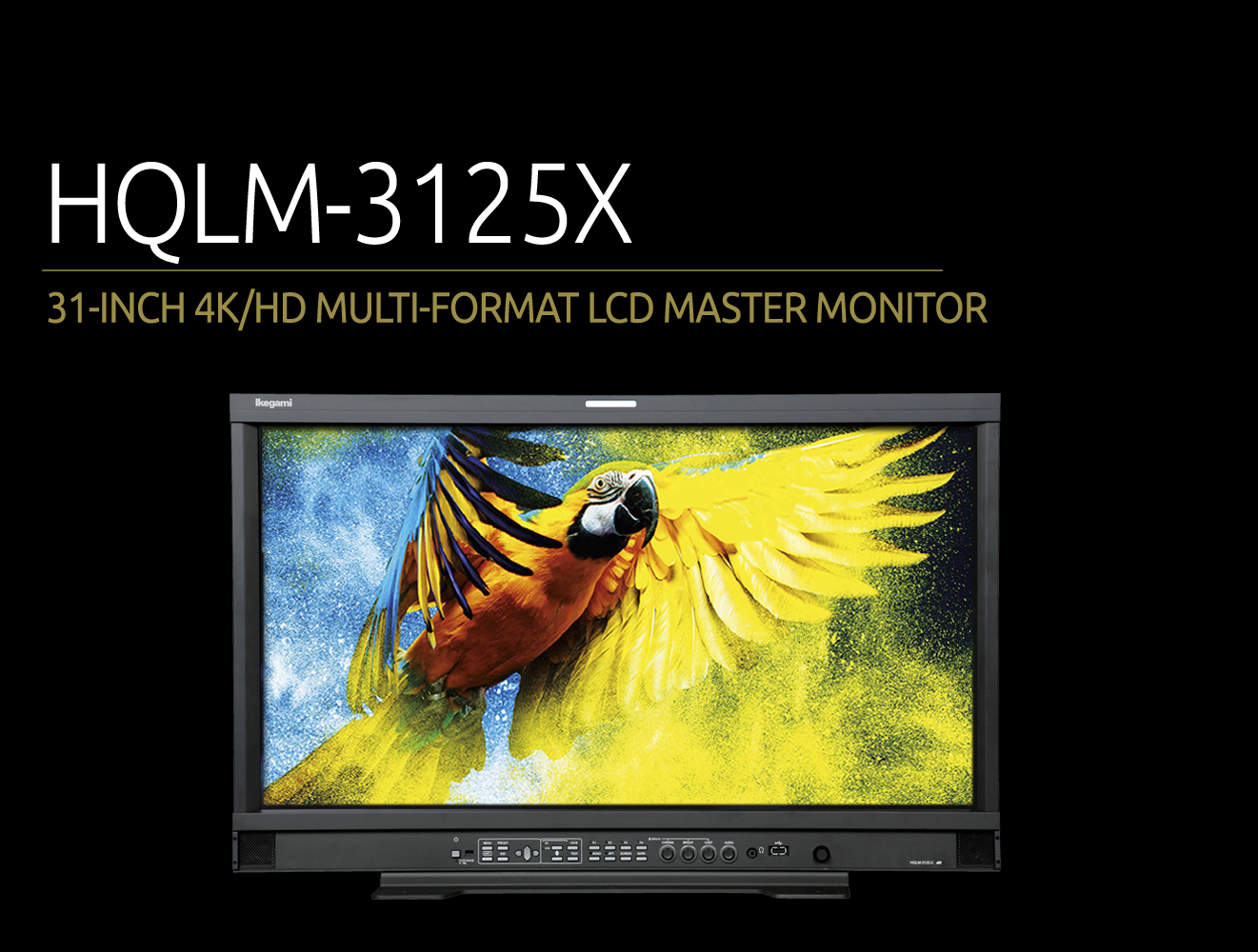

HQLM-3125X
FUNCTIONS
RATINGS


The HQLM-3125X is a Grade-1 4K HDR Master monitor and represents a new dimension in critical image evaluation. It employs a ground-breaking Double-Layer LCD 4,096×2,160 pixel 10-bit resolution panel with 1.000 Nits and a contrast ratio of 1,000,000:1. 2x 12G-SDI, 3x 3G-SDI In- & Outputs and 1x HDMI are available as standard features. When it comes to 3G-SDI×4, square-division and two-sample interleave are available. A wide critical viewing angle of 178° (horizontal/vertical) allows users to see accurately displayed images from any angle.

Convenient features such as Multi-Viewer-Screen, Side-By-Side Video, Audio Meters, User Markers and R/G/Y Tally make the Ikegami HQLM monitor series the ideal companion for broadcast productions. The HQLM-3125X additionally features an integrated Gamut Marker (BT.709 outbound colours are highlighted), 1D/3D LUT support and Payload ID recognition for automatic monitor setting adjustment.

Supporting various EOTF tables (HLG, PQ, S-Log, DCI-P3, …) and Wide Colour Gamut BT.2020 as well as conventional BT.709, the HQLM-3125X is the ideal solution for 4K grading suites.

  • Diverse Input Signal Formats
  • 1.000 Nits / 1Million:1 Contrast
  • UHD LCD Panel
  • Gamut Marker
  • 1D/3D LUT Support
  • Faithful Color Reproduction
  • 12G-SDI and 3G-SDI In-/Outputs
  • Compatibility with embedded audio
  • Built-in Marker Function
  • User Marker Display Function
  • Shadow Function
  • Remote Control via Ethernet or RS-485
  • Various built-in Test Signals
  • Waveform Monitor/Vectorscope Display Functions
  • Timecode Display Function
  • HDR mode and colour space setting by Payload ID
  • Dot-by-Dot Display Function
  • Multi-Viewer-Screen and  Side-By-Side Picture Mode
  • 5.1ch Surround Down-Mix Output
  • Image & Test Signal MIX Functions
  • IMD/UMD: TSL V3.1 & V5.0 Support
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form



up


DIVERSE INPUT SIGNAL FORMATS

Available with 12G-SDI, 3G-SDI (SQD/2SI), HD-SDI and HDMI (HDCP2. 2) inputs as standard. *Note: SQD=Square Division / 2SI=2 Sample Interleave:



UHD LCD PANEL

It employs a 31.1-inch 4096x2160 pixel UHD LCD panel with a contrast ratio of 1,000,000:1 (1,000cd/M2) using LED backlight. The monitor has a wide viewing angle allowing critical content evaluation within a horizontal or vertical viewing angle of up to 178 degrees.



FAITHFUL COLOUR REPRODUCTION

It provides a wide color gamut corresponding to the ITU-R BT.2020 Standard.

*Color space can not be fully displayed.





SUPPORTS AUDIO SIGNALS

Audio output is available through internal stereo speakers, stereo headphone jack and stereo l ine out by automatic identification of embedded audio signals multiplexed into the SDI or HDMI signal . An embedded audio level meter can be displayed on screen as standard. *Note: The output can be selected from a pair channels or a 5.1 channel down mix.



MULTI-VIEWER

There is an available multi-display for up to 4 screens when inputting HD-SDI or 3G-SDI signals.



TIME CODE

Time code (VITC/LTC) multiplexed into the HD-SDI signal can be displayed on the screen.



REMOTE CONTROL FUNCTION

The monitor can be controlled with the use of a parallel, serial, or wireless remote controller.



WFM/VSC

Waveform and Vector displays are available on screen.



TEST PATTERN

A variety of test patterns are built-in.



USB MEMORY

Various data such as menu, preset and captured image can be stored and copied in a USB memory.

up

RATINGS / PERFORMANCE HQLM-3125X
DISPLAY PANEL
Display Type LCD
Number of Pixels H4096 x V2160 pixels
Pixel Pitch W0.1704 x H0.1704 mm
Viewing Angle 178°(up&down, left&right)
Number of Display Colors 1.07 billion colors (RGB each have 10-bit)
Contrast Ratio 1,000,000:1(typical)
Brightness (panel) Max. 1,000cd/m²
Display Size 17:9 W698 x H368mm
EOTF ITU-R BT.2100 (HLG & PQ), 2.2, 2.4, 2.6, S-Log, S-Log3, ACES Proxy
Color Space ITU-R BT.2020*, ITU-R BT.709, DCI-P3 D65*, DCI-P3*, ACES*, Adobe RGB*, S-Gamut, S-Gamut3.Cine, Panel
*Color space can not be fully displayed.
Color Temperature Setting D65 / D93 / USER setting (Files 1 to 8)
Power Requirement AC100 to 120 / 200 to 240V±10%, 50/60Hz
Power Consumption approx. 450W
Ambient Temperature 0℃ to +35℃ (32℉ to +95℉) (20 to 85% humidity non-condensing)
Storage Temperature -10℃ to +50℃ ( 14℉ to +122℉) (10 to 85% humidity non-condensing)
Dimensions W762 × H467 × D172mm (W30 × H18.4 × D6.8 inch)
Weight 30kg (66.14lbs)

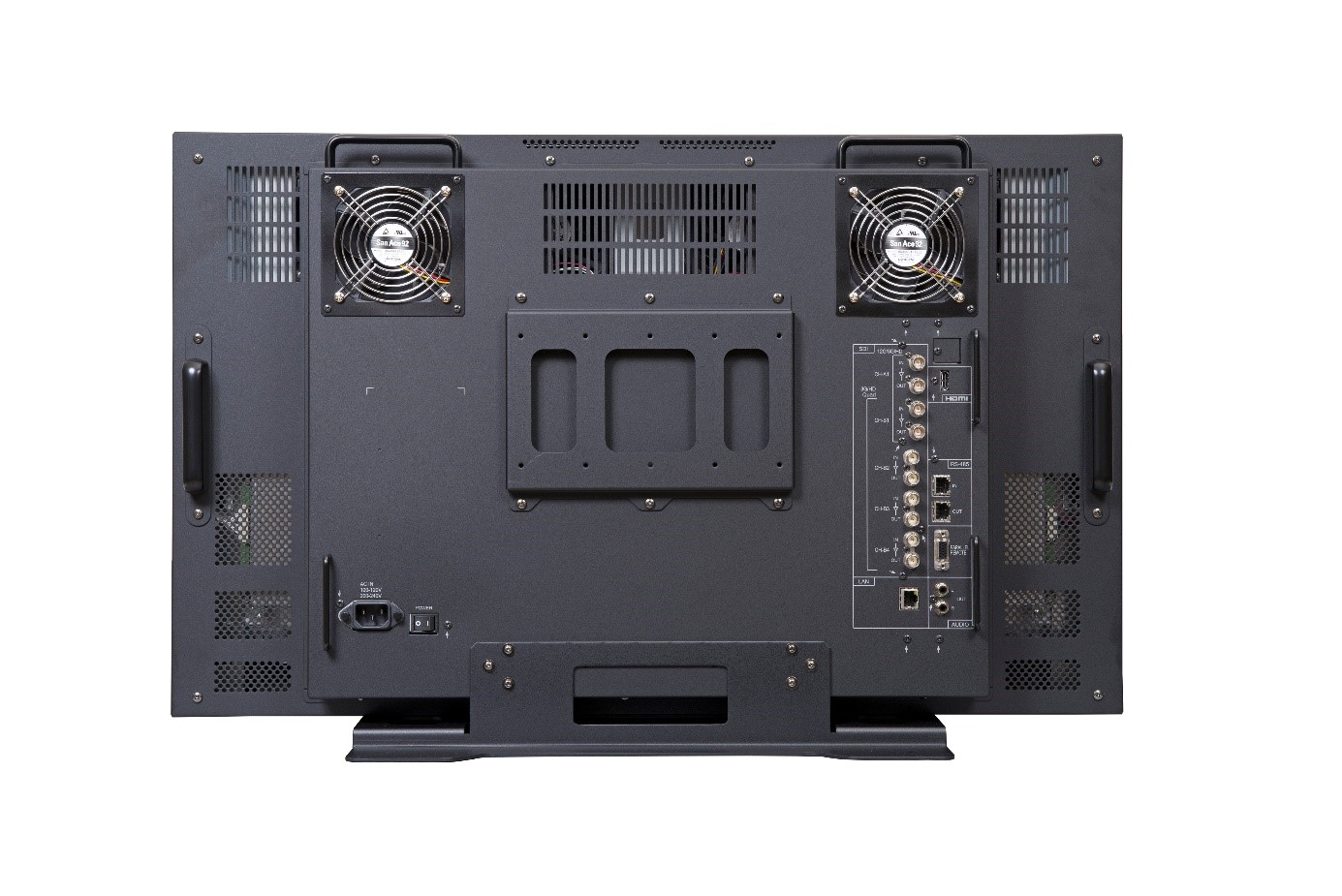

INPUT & OUTPUT SIGNALS (STANDARD)
12G-SDI 2 BNC inputs / 2 BNC outputs (Active Loop Through)
Max.70m with 5.5CUHD cable
3G-SDI 5 BNC inputs (2 shared with 12G-SDI) / 5 BNC outputs (2 shared with 12G-SDI) (Active Loop Through)
HDMI 1 input (HDCP2.2)
Audio Display Embedded Audio Level Meter Display (8ch)
Analog Audio Output Available (Stereo)
5.1ch Surround Down-mix Output Available
Headphone Output Available
