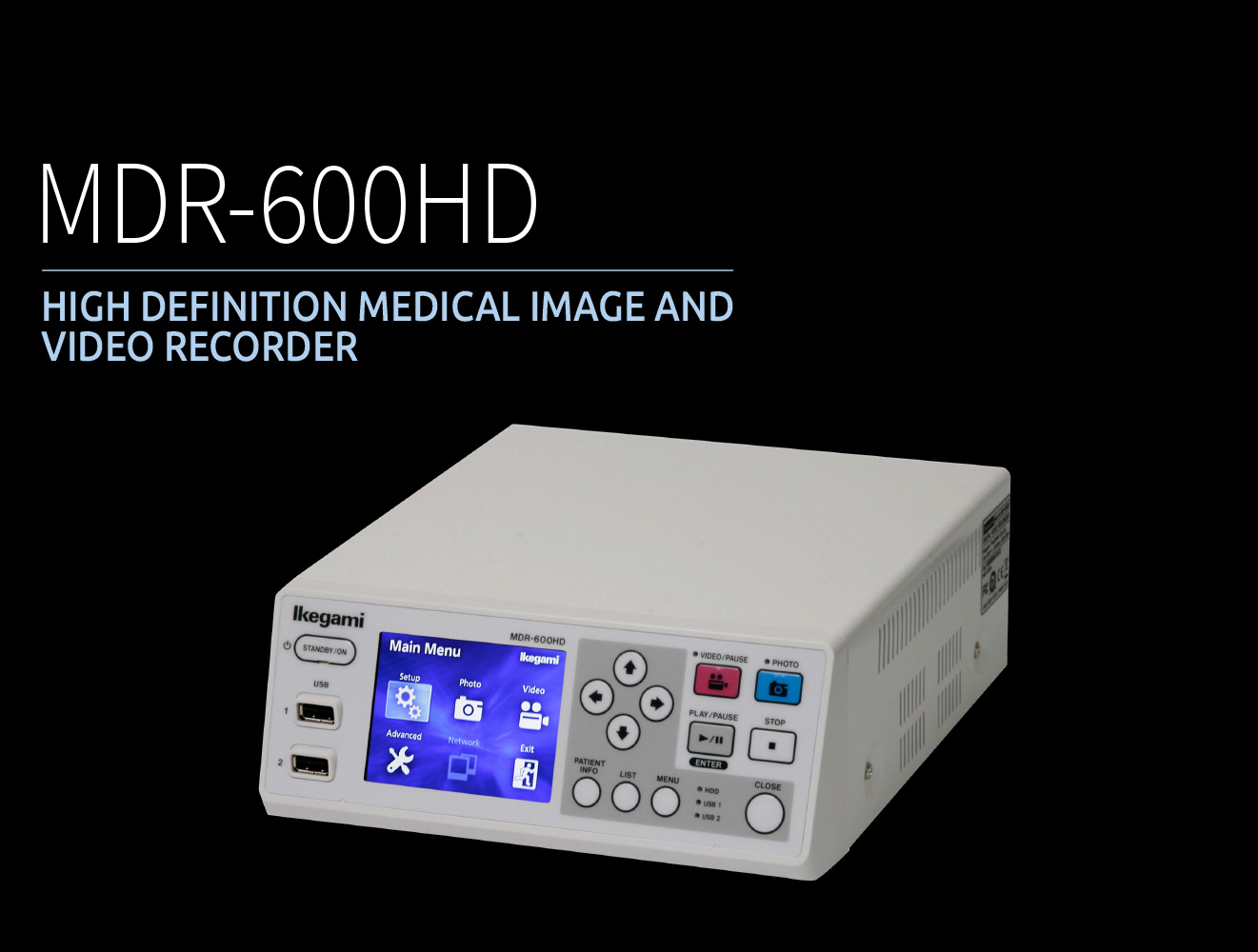

MDR-600HD
FUNCTIONS
RATINGS


Various type of video signals (SD & HD) can be recorded by simple operation. Reliable simultaneous recording and playback feature on Internal HDD or External USB-device is also available.

  • Full-HD 1920x1080 Video and still Image Recording
  • Multi-Interface
  • Built-in LCD Monitor
  • Various Search Feature
  • Image Data Transfer
  • Back-up Power for Momentary Stop
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: medical@ikegami.de
Contact Form




up


HIGH QUALITY VIDEO AND IMAGE

High quality SD/HD video and still image (640x480 to 1920x1080) can be recorded and play backed simultaneously.



DUAL RECORDING FEATURE

Simultaneous recording feature on Internal HDD and External USB device secure data reliability. Maximum 3-way recording (Internal HDD and 2x USB devices) is available.



AUTO-SIGNAL DETECTION & AUTO-RESOLUTION FOLLOWING

Simply connect with video input device, it enables the auto-signal detection and the auto-resolution following feature and quick start.



IMAGE-DATA TRANSFER FEATURE (OPTION)

Transferring data using LAN and retrieving data from internal HDD or mass storage device using USB cable, and auto forwarding to FTP/CIFS server are available.



VARIOUS SEARCH FEATURE

Patient data (Date, ID, Name, DOB, Sex) can be searched and reproduced quickly.



SIMULTANEOUS RECORDING AND PLAYBACK FEATURE

Still image can be saved during video recording, also video or still image can be  play backed during video recording period.



SIMPLE OPERATION

Just one button "Video" enable start recording video, also just "Photo" button enable start recording still image.



BUILT-IN LCD MONITOR

Recording or Play backing video can be checked on LCD monitor. Also unit status and remaining data space can be displayed.

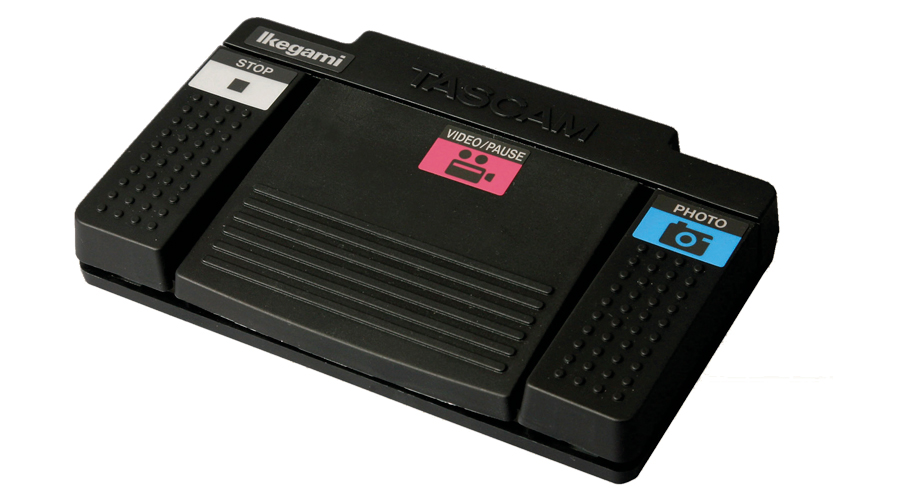

EXTERNAL CONTACT SWITCH

External contact (foot) switch can control recording start, stop and hold.



APPLICABLE SAFETY REGULATION

IEC60601-1, CSA60601-1, EN60601-1, CE



EMC REQUIREMENT

IEC60601-1-2, CSA60601-1-2, EN60601-1-2, FCC classB

up

RATINGS / PERFORMANCE MDR-600HD
Internal 2.5-inch HDD (Data Capacity 500 GByte)
External USB Drive (Flash Memory or HDD)
Display 3.5-inch, Full Colour LCD
Video Composite 1.0 Vp-p 75 Ω
S-Video 1.0 Vp-p 75 Ω luminance Signal
NTSC 0.286 Vp-p 75 Ω chrominance Signal
PAL 0.3 Vp-p 75 Ω chrominance Signal
SD SD-SDI NTSC (480 i), PAL (576 i)
HD-SDI 1080 p, 1080 i, 720 p
DVI-D 640 x 480 - 1920 x 1200 (1920 x 1200 will be reduced to 1728 x 1080)
Audio -9.5 dBs 10 k Ω or higher, unbalanced Exclusive with SDI Video Input connector
LAN RJ45 (100Base-TX/1000Base-T)
USB-A Recording x 2 (Front USB 2.0)
USB-B For PC Connection x 1 (Rear USB 2.0)

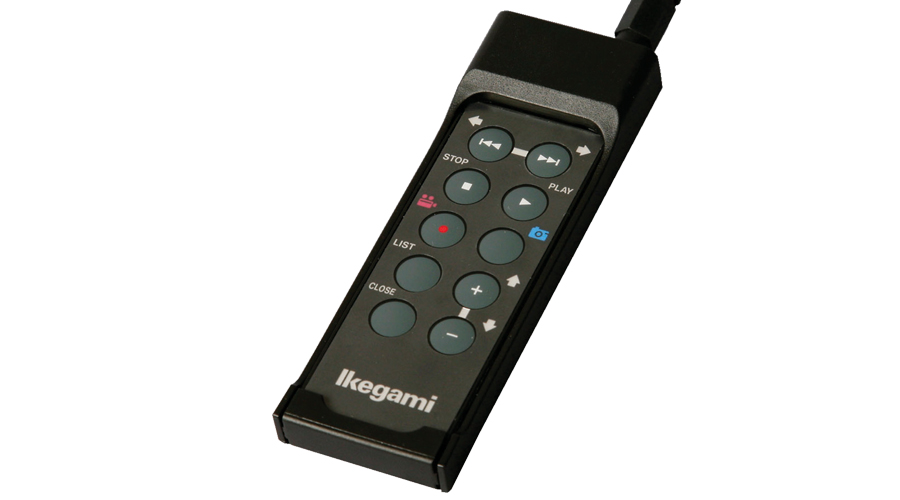

Remote 2.5-inch Mini-Jack
Contact Switch 3.5-inch Mini-Jack, Video x 1, Photo x 1
USB Drive Flash Memory or HDD
Format FAT32
Still Image JPEG
Video Compression MPEG-4 AVC / H.264
File Format mov
Recording Time 90 hours. Internal HDD: 500GB, EQ: Economy Quality
Compression LPCM
Sampling Freq. 48 KHz
Quantifying Bit Number 16-Bit
Operating Temperature 5 °C to 40 °C (32 °F to 104 °F)
Humidity 5 % to 80 % RH (non-condensing)
Dimension W210.5  x H88.5  x D235.0 mm (incl. rubber foot)
Weight 2.6 kg (5.7 lbs)
Accessories Power Cord x 1 Instruction Manual (with Warranty)
