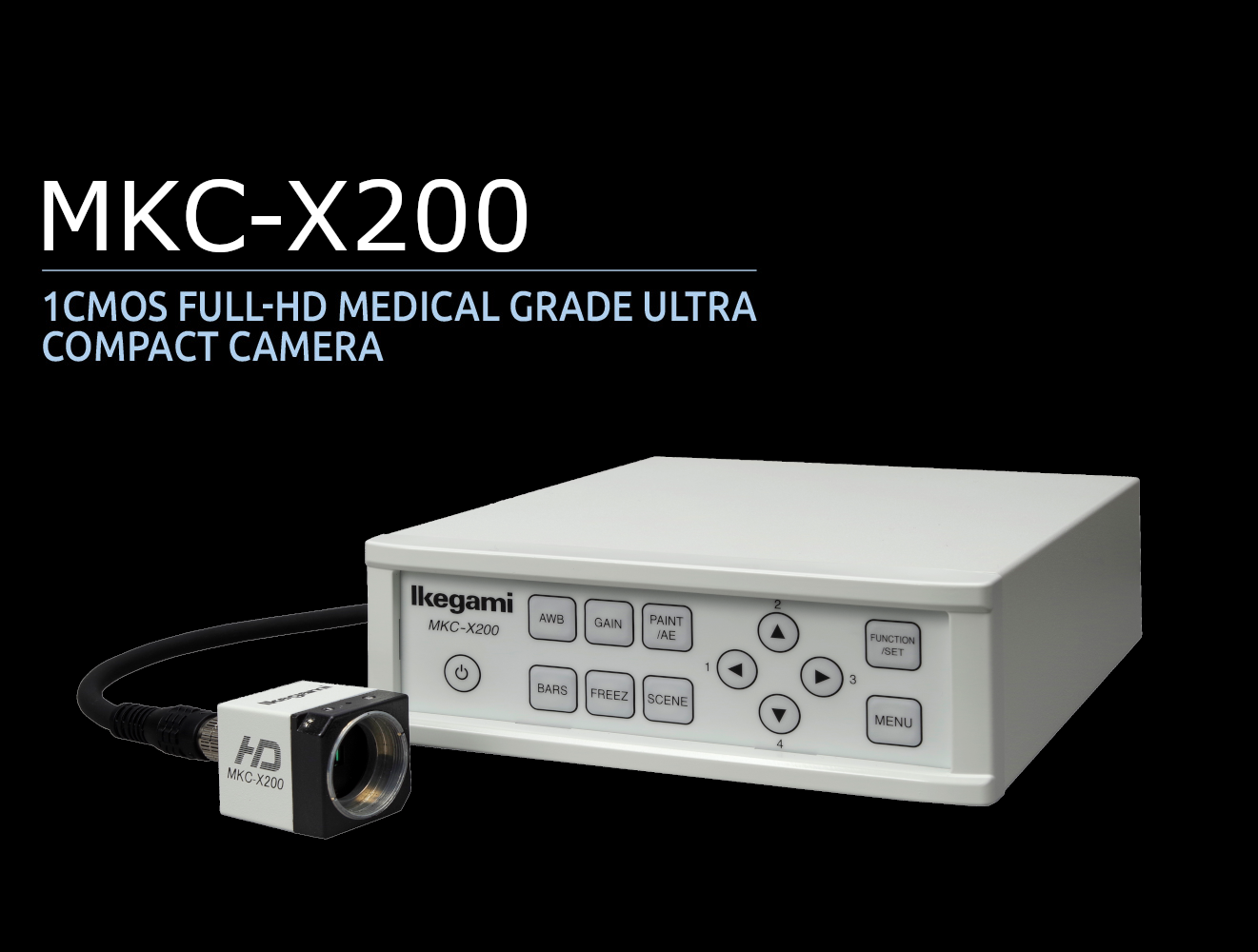

The MKC-X200 employs 2.1 Mega pixel Full-HD 1/2.8-inch CMOS sensor to provide 900 TV lines of high definition video images, and the optimal video quality required for high-end medical video systems.
- 1 Chip CMOS progressive Image
- 1/2.8-inch Full-HD (1920x1080)
- FPGA based
- High Resolution: Horizontal 900 TV Lines, S/N 56dB
- High Sensitivity: F11 at 2000lx/3200K
- Ultra Compact Camera Head: W31xD31xD36mm
- Excellent Operability for Use in the Medical Field
- OEM Possibility
You want further information?
Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: medical@ikegami.de
Contact Form

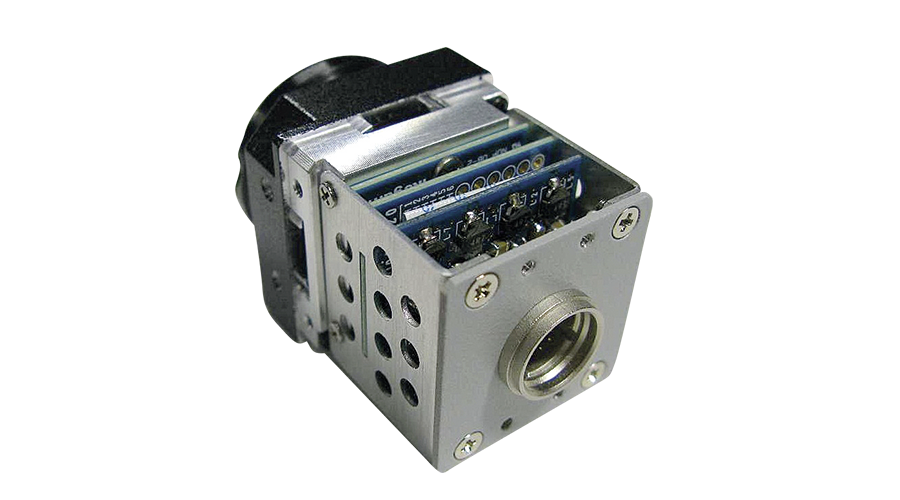

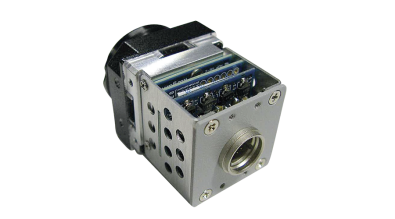

ULTRA COMPACT CAMERA-HEAD
The camera-head is extremely small (W31xH31xD36mm) and lightweight approx. 60g.
HIGH RESOLUTION AND HIGH SENSITIVITY
The MKC-X200 employs a 2.2Mega pixel 1/2.8-inch CMOS Sensor to provide 900 TV lines of high resolution video image, high S/N ratio of 56dB and high sensitivity of F11/2000lux.
DIGITAL PROCESSING
Video signal processing is done in the same signal process as Ikegami’s broadcast cameras to constantly achieve the same high level of quality and reliability.
VARIOUS TYPES OF VIDEO SIGNAL OUTPUTS
Equipped with several video signal outputs such as digital HD signal (HD-SDI), DVI digital signal (1920×1080), NTSC/PAL composite signal (VBS) and S-VIDEO to deal with various types of signals.
AUTOMATIC ELECTRONIC SHUTTER SYSTEM (SHUTTER IRIS)
Electronic shutter (Shutter Iris) functionality maintains the optimized performance in a variety of situations.
AUTOMATIC IRIS CONTROL
Accurate iris control is possible with Auto-iris camera adaptors and Auto-iris lenses.
* This is used for the shadowless lamp system.
PICTURE FREEZE
Pressing the Freeze button on the CCU panel will hold the current image. This allows the detailed inspection of situations where the motion could hide the details. The function is also available with the optional foot pedal. The pictures can be recorded into SD card of optional IP Ethernet board.
SCENE FILE
4 scene files are provided to keep pre-set memories for functions and controls. It is easily possible to call suitable programs to adapt the conditions for taking photographs by this function.
FLIP AND TURN FUNCTION
Digital capture means that captured images can be flipped horizontally and vertically by the digital processing to correct TV images against the optical inversion caused by optical instruments. An optional foot pedal is required to allow an external operation for this function.
ELECTRONIC ZOOM FUNCTION
The center of video image on the screen can be zoomed up to four times by using this function.
ACCESSORIES

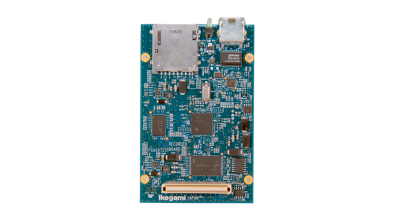

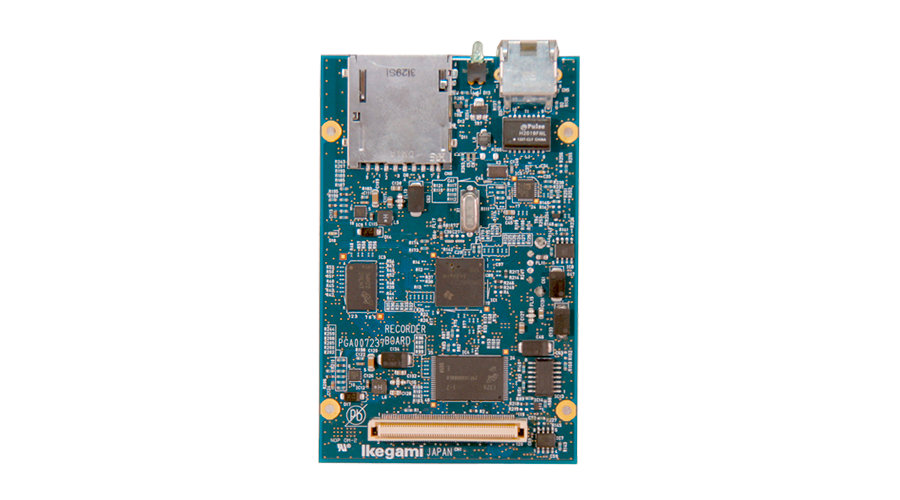

Recording Board
Dual Foot Pedal
DOWNLOAD PRODUCT BROCHURE
