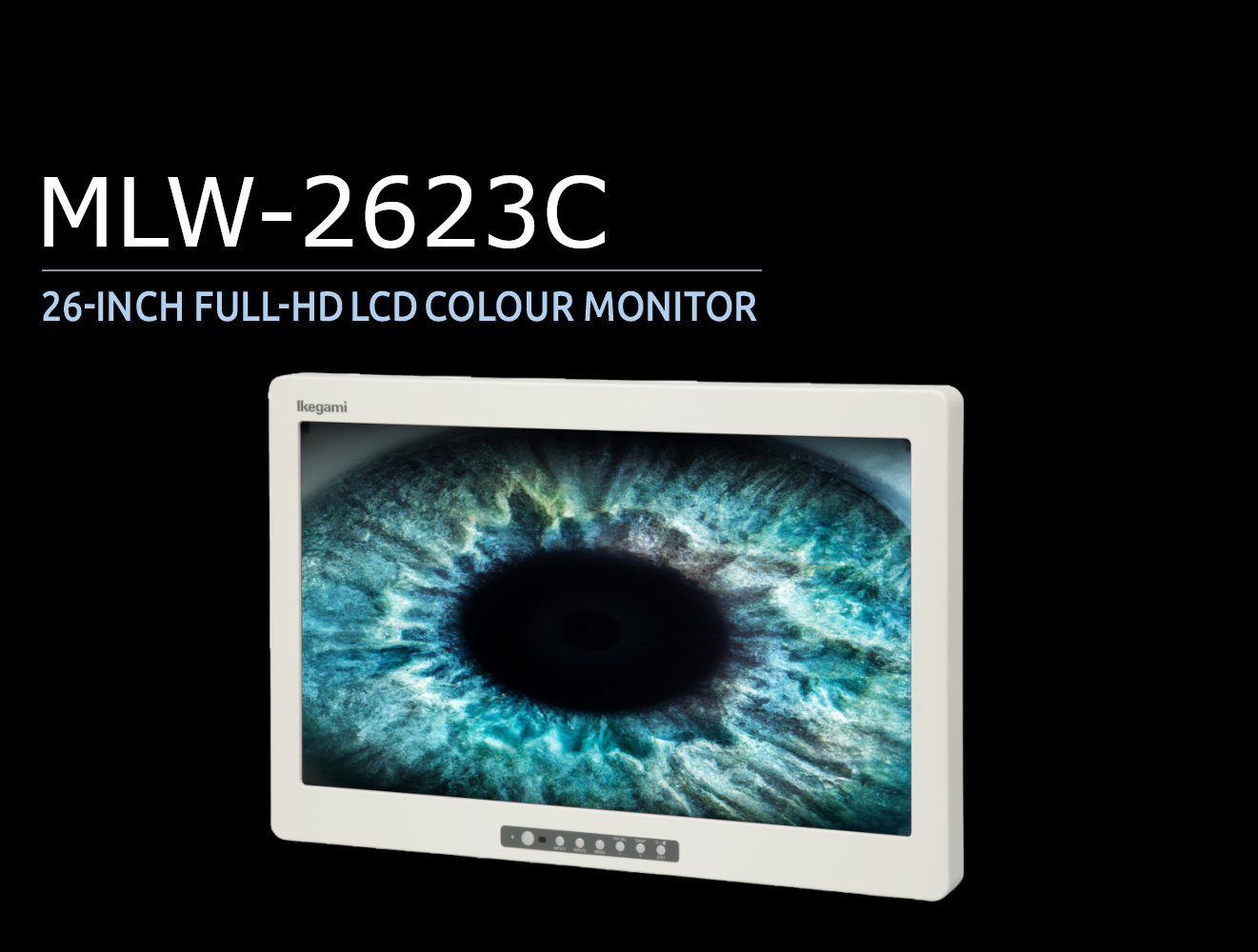

MLW-2623C
FUNCTIONS
RATINGS


MLW-2623C is a wide screen 26-inch LCD monitor with the high resolution 1920 (H) x 1080 (V) Full HD LCD panel, maximum brightness of 450 cd / m2 and wide angle of 178 degrees.

  • Fully compliant with medical safety directives
  • New Full Flat design for Front panel
  • New IPS panel with LED  backlight (450 cd/㎡)
  • High Resolution, True color display (1.07 Billion Color gradient)
  • Jaggy-less I / P Conversion Process
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: medical@ikegami.de
Contact Form


up


10-BIT LCD PANEL

Further smooth colour gradation can be achieved by processing 10 bit signal from signal input to display.



178 DEGREES HIGH CONTRAST VIEWING ANGLE

LCD panel based on IPS technology is employed for 178 degrees high contrast viewing on UP/DOWN/LEFT/RIGHT. This characteristic prevents from intensity and colour shift by the viewing angle.


RATINGS / PERFORMANCE MLW-2623C
LCD Size 26-inch
Backlight LED
Pixels 1920 (H) x 1080 (V)
Brightness 450 cd/m2
Screen Size 576(H) x 324(V) mm
View Angle 178° (H / V)
Contrast Ratio 1400:1
Display Colours 1,073,741,824 Colours
Input Video signal DVI 1ch
Certification UL60601-1, CSA C22.2 No.601.1
EMC FCC Class A, VCCI Class A
Power Requirement AC IN 100-240 VAC 47-63 Hz 1.2-0.5 A
Weight / Dimensions Approx. 8kg / 640 (W) x 418 (H) x 82 (D) mm
