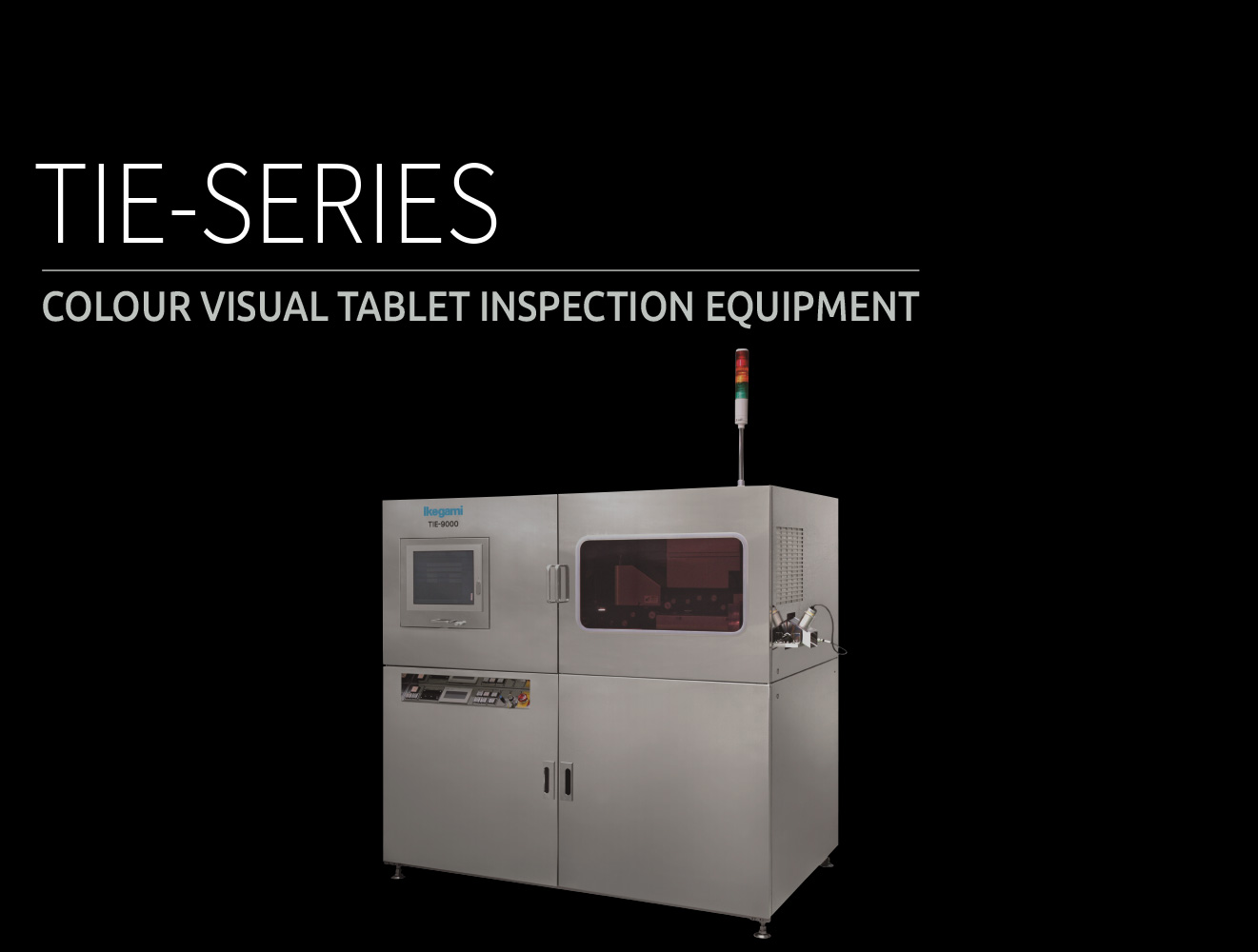

By adopting the newly developed optical system A.I.I., the TIE-9000 series has the capability of inspecting tablet for diffuse stains, printing defects, and many other defects with a high degree of accuracy. The new developed high quality color line sensor is equipped with the camera unit. Also, combined the high quality image processing technology, the detection accuracy of color stain is significantly improved. The TIE-9000 series can contribute greatly to improving product quality, consistency and safety, as well as helping to improve overall production efficiency.

  • Operate while Checking Transportation Section
  • Camera for High Accuracy Inspection (Option)
  • Process Data Store in PC connected to LAN
  • Easy Setting of pre-set Threshold (Option)
  • Display Sample on Touch Panel
  • RGB Colour line sensor
  • Colour processing technology allows diffuse stains and printing defects to be easily detected
  • High accuracy detection of small defects, foreign matter and fiber in or attached to the tablet
  • Extensive supply of tablet
  • Feeding section
  • Stable high-speed transportation by 2 rows belt transportation section
  • High speed and stable supply
  • Colour touch panel

You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: industrial@ikegami.de
Contact Form

up

RATINGS / PERFORMANCE TIE-Series
Applicable tablet Plain tablet, Film-coated tablet, Sugar-coated tablet, Irregular-shaped tablet
(Division-lined tablet, Engraved tablet, Printed tablet <Oneside/Both sides>)
Shape [Round tablet] 5mm - 12mm [Irregular-shaped] length max 21mm
Thickness 2mm - 8mm (Other sizes may be capable with custom settings: option)
Colour White color -Dark Brown, Colored type
Inspection items Front/Back/Sides Inspection Stain, Printing smudge, Chipping, Cracking, Deformation, Discoloration, Color difference, Hair, Fiber, etc.
Inspection accuracy Front/Back/Sides 50 micro meter in diameter or larger corresponding to black spot
Processing capacity TIE-9000 250,000 to 300,000 tablets/hour (depends on table type and size)
Processing capacity TIE-9500 500,000 to 600,000 tablets/hour (depends on table type and size)
Lighting Standard inspection High & stable luminance LED, Diffused illumination, Adjustable intensity, Expected life span 30,000H or longer
Lighting Surface/Bottom High & stable luminance LED, Diffused illumination, Adjustable intensity, Expected life span 30,000H or longer
Camera Standard inspection High sensitivity color line sensor camera, Lens: F2.8 f=52mm, Scanning method: one axis self-scanning
Camera Surface/Bottom High sensitivity color line sensor camera, Lens: F2.8 f=52mm
Judgement process High speed, real-time parallel processing method
Power Requirement TIE-9000: Three phase AC200V +/- 10%, 50/60hz, 5kW or higher (Selectable AC200V/210V/220V)
Power Consumption TIE-9000: Less than 3kW (exclude optional units)
Power Connection caliber Terminal tables: M6 screws R/S/T/FG 4 terminals
Air Pressure 0.5Mpa or more
Air Consumption Approx. 400 liter per minute
Air Connection caliber High coupler socket (400SH - 400PM)
Operating temperature +20°C～+30°C
Relative humidity 30% to 70% (no condense)
External dimensions W1780 x H1751 x D1060 mm (excluding protrusions)
Weight Approx. 1,400kg
Optional features 3D inspection system, Congestion removal feature, CSV function, Deduster/Cyclone unit, Printing Software, Surveillance system, Additional sensitivity setting feature, Simulator feature
