VCP
RATINGS

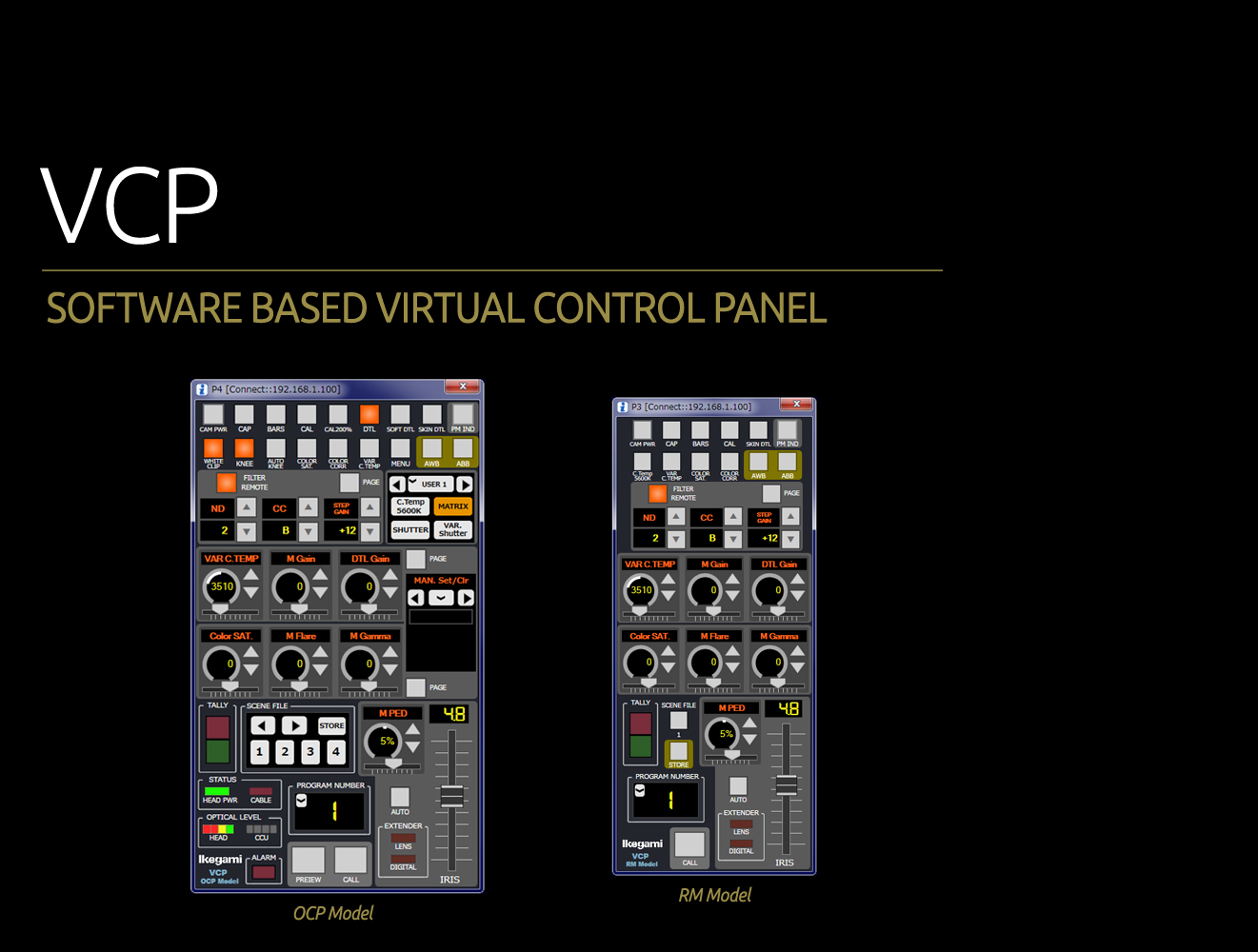

Ikegami's new software based Virtual Control Panel (VCP) is an application to control up to 5 cameras from a single Windows PC. With customizable buttons and slide bars, each Control Panel can be set-up seperately for each camera. Depending on the desired control depth and budget, different licences are available for purchase, reducing the price drastically compared to our OCP-300 and OCP-100 control panels. It is possible to combine multiple VCPs with our conventional OCPs via a local network.

  • Software based Control Panel System for local ethernet networks
  • Supports up to 5 total cameras per Windows PC
  • Fully customizable buttons and slide bars
  • Two different panel models (RM or OCP model) and multiple licences available for different budgets
  • Ideal for small productions, houses of whorship, static cameras, ...
  • Combination of multiple VCPs, OCPs and MCPs is possible

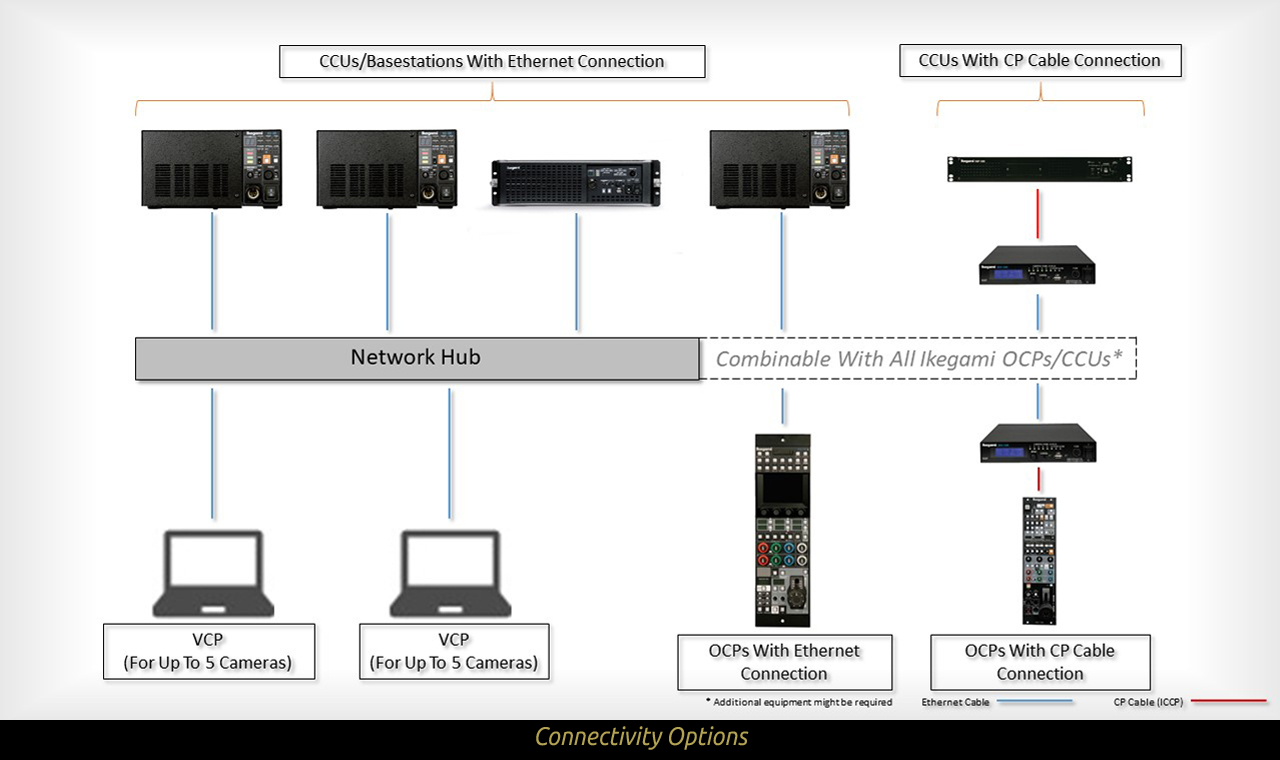

Connection Options

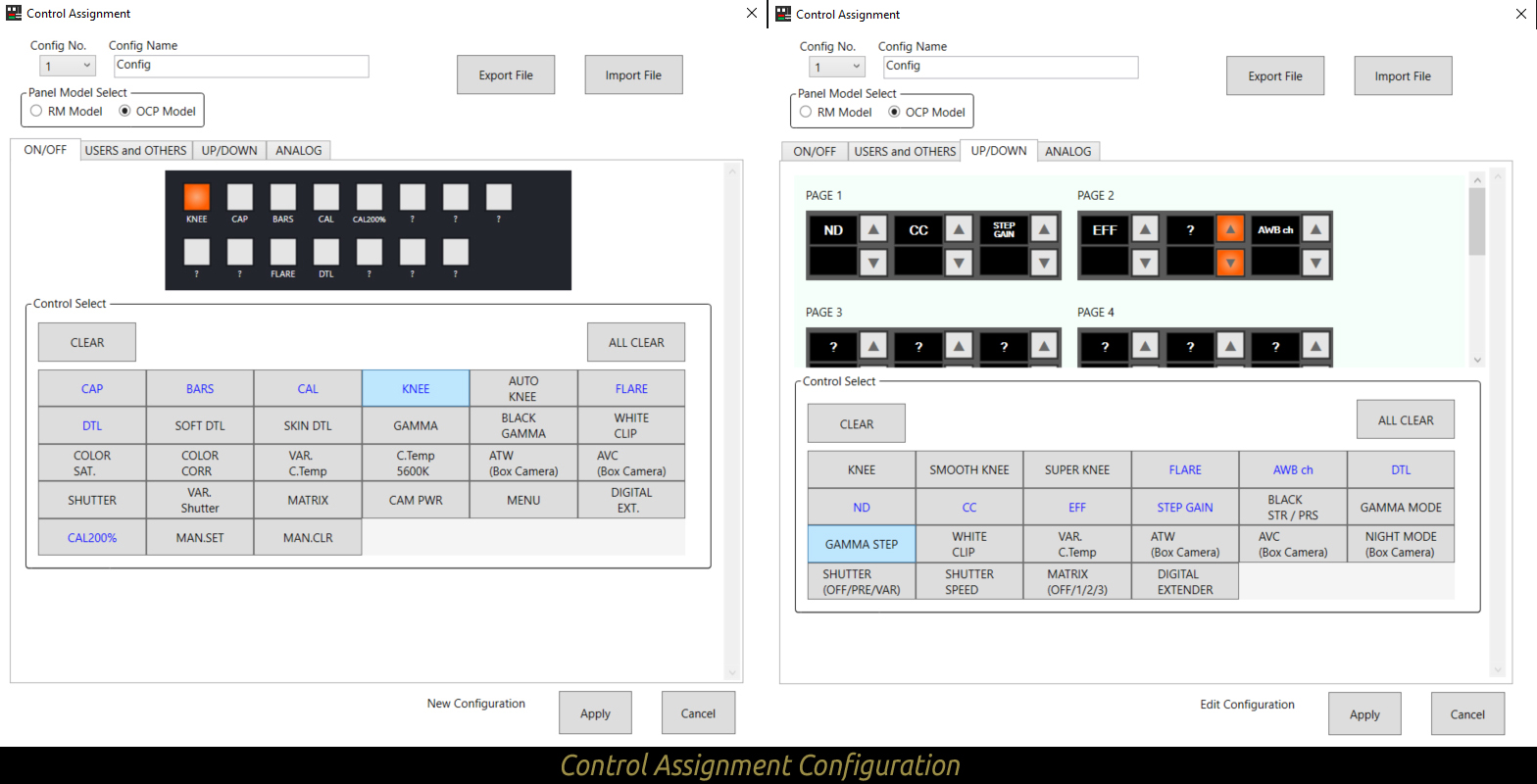

Control Assignment Configuration

You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form



up

RATINGS / PERFORMANCE VCP
OS Microsoft Windows 7 Professional SP1 (64 Bit/ 32 Bit)
Microsoft Windows 10 (64 Bit/ 32 Bit)
.NetFramework .Net Framework 4.6.2
Licence 5 Control Panels per licence
Memory Minimum 200MB
HDD 3MB or more of free space (10MB or more recommended)
Network 100Mbps or more
LAN Wired LAN only
Display 800x600 resolution or higher (1920x1200 recommended when displaying 5 panels)
