VFL201A
FUNCTIONS
RATINGS

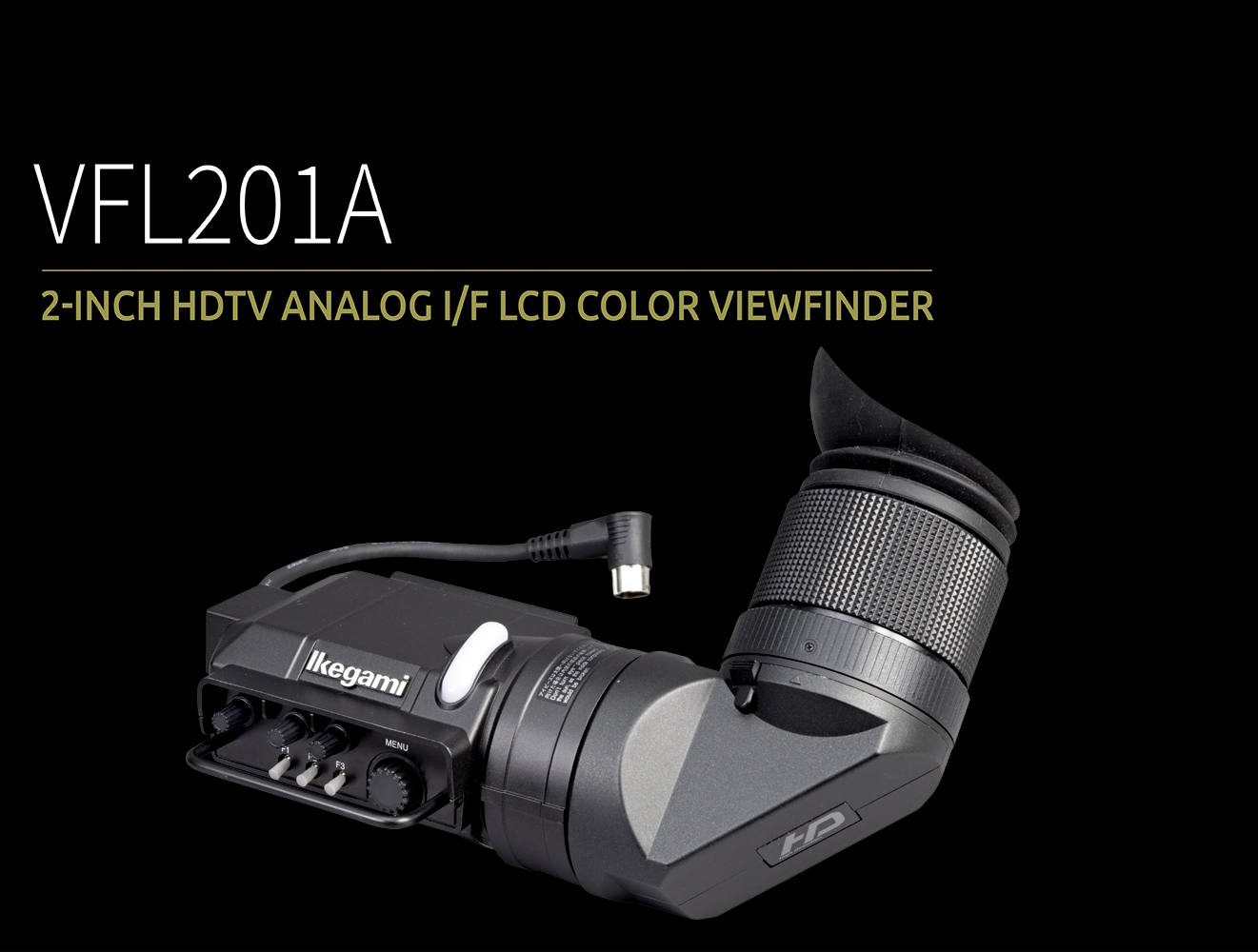

The VFL201A is a 2-inch LCD viewfinder with an analogue interface developed for the UNICAM-HD camera series (HDK-99/-73). It has a high resolution QHD LCD with 960 (H) X 540 (V) pixels. It is possible for users to confirm high resolution video with realistic full color reproduction. By improving its functions and operation, it achieves the performance required for a viewfinder for modern broadcast cameras. An integrated heater enables deterioration-free panel performance even under low temperature conditions.

  • An LCD with integrated heater is used
  • Abundant peaking features
  • Image magnification display feature
  • Full-color display of 16.7 million colors
  • Abundant markers with shadow
  • Touch sensor function
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form



RELATED ITEMS


up


LCD PANEL WITH INTEGRATED HEATER

A transparent heater is installed right under the liquid crystal layer. The ambient temperature can be detected, ensuring high response speed of the crystal layer even under low temperature conditions.



ABUNDANT PEAKING FEATURES

This viewfinder supplies abundant peaking features: “ZOOM UP PEAKING” which is synchronized with the camera zoom operation and “COLOR PEAKING” which can add color on the peak signal, which supports easier adjustment of focus.



IMAGE MAGNIFICATION DISPLAY FEATURE

This viewfinder can display a magnified image and supports more accurate focusing.



FULL-COLOUR DISPLAY OF 16.7 MILLION COLOURS

16.7 million colours (8bits colour) are achieved by a full-colour display and a high definition image is supplied.



ABUNDANT MARKERS WITH SHADOW

In addition to the area marker, center marker, shadow feature and cross hatch marker, there are 6 (maximum) user markers for each scene, which can be set freely by users. Additionally, 5 scenes are already prepared from factory.



TOUCH SENSOR FUNCTION

It detects as soon as a FUNCTION switch is touched and displays the function name of the touched switch on the screen. (Patent pending)



ACCESSORIES

The following Options are available for the product. The “Offset hardware”, by which you can adjust the position of mic holder, is supplied for each mic holder.

  • Mic holder Type No. XM-164 (Small antivibration / 21)
  • Mic holder Type No. XM-174A (Large antivibration / 19-21)
  • Mic holder Type No. XM-254 (Large / 19-26.5)
up

RATINGS / PERFORMANCE VFL201A
Supply voltage +12 V DC (10.5~18 V)
Power consumption 4.1 W (+12V DC, Color bar ON (1080i/59.94), Heater OFF, Tally OFF)
Ambient operating temperature In operation: -20°C ~ 45°C
For storage: -20ºC ~ +60ºC
Ambient operating humidity In operation: 20%~85% (non condensing)
For storage: 20%~85% (non condensing)
Dimensions Main unit: 225 (W) × 76 (H) × 155 (D) mm
(not including protrusions and the mounting bracket)
Weight 780g or less
Accessories The mounting bracket (1)
Operation manual (1)
Input terminal Input: camera interface 1 system
Input signal format (automatic recognition) 1080/60i, 1080/59.94i, 1080/50i, 1080/24PsF, 1080/23.98PsF, 1080/30p, 1080/29.97p, 1080/25p, 1080/24p, 1080/23.98p,
720/60p, 720/59.94p, 720/50p, 720/30p, 720/29.97p, 720/25p, 720/24p, 720/23.98p
Input signal Analog RGB/YPbPr signal
Input level G/Y: 1Vp-p (including SYNC) positive polarity
B/R/Pb/Pr: 700 mVp-p positive polarity
Input impedance 75 Ω
LCD module specifications
Pixels number 960(H) x 540 (V) dot
Pixel pitch 0.0155mm (W) x 0.0465mm (H)
Screen size (display area) 44.64mm x 25.11mm (51.2mm diagonal)
Screen brightness (Only LCD specification) 220cd/m²
Drive method a-TFT active matrix, non-interlace,normally white
Pixel arrangement RGB vertical strip e
Response speed Ton+To ff:16ms(typ .) (Ta=25°C)
Contrast ratio 200:1 (Typ.)
Number of display colors 16.77 million colors (Each of RGB at 8 bits)
Angle of visibility 45° (up and down, left and right) (contrast ratio 10:1 more)
