HLM-960WR
RATINGS

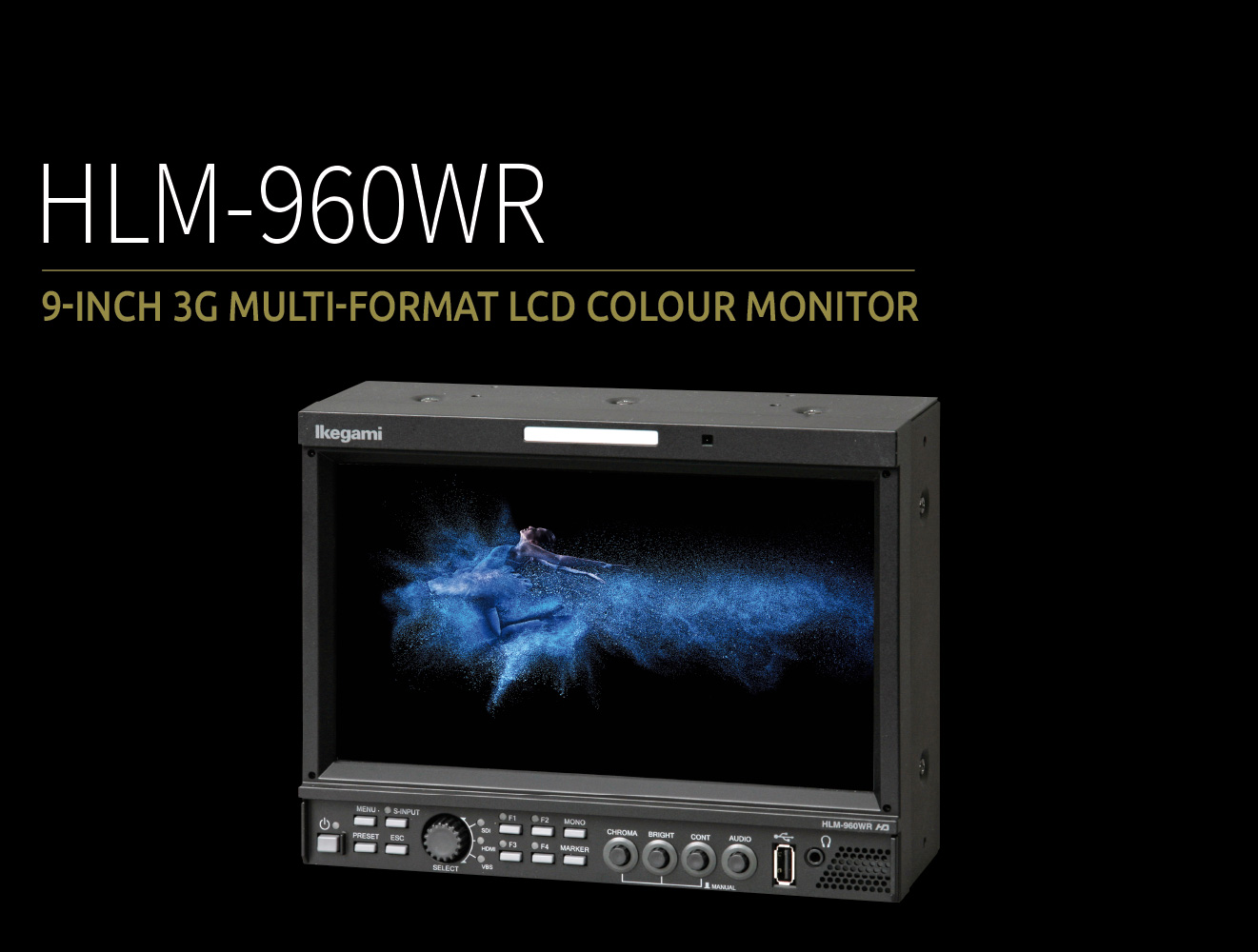

A very compact and affordable solution for various broadcast monitoring applications, the HLM-960WR is a multi-format 9-inch monitor with Full HD (1920x1080) 8-bit LCD panel and LED backlight. 3G-SDI input comes as standard.

Convenient features such as Picture-In-Picture, Side-By-Side Video, Audio Meters, User Markers and R/G/Y Tally make the Ikegami HLM monitor series the ideal companion for broadcast productions.

The 60 series monitors support HDR (High Dynamic Range) EOTF tables of HLG1, HLG2 and S-Log3 as an option in addition to conventional Gamma.

  • High Performance Liquid Crystal Panel
  • Compatibility with embedded Audio
  • DC Operation
  • Built-in Marker Function
  • User Marker Display Function
  • Shadow Function
  • Remote Control via Ethernet or RS-485
  • Various built-in Test Signals
  • Waveform Monitor/Vectorscope Display Functions
  • Timecode Display Function
  • 2-picture Split Display
  • Dot-by-Dot Display Function
  • Auto Setup with supported probes (Konica Minolta CA-310/-410, Klein Optical Instruments INC K10-A, Jeti Technische Instrumente GmbH Specbos 1211-2)5.1ch Surround Down-Mix Output
  • Image & Test Signal MIX Functions
  • 2x/4x Zoom Function
  • IMD/UMD:TSL V3.1 & V5.0 Support
  • High Dynamic Range support (Factory-option)
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form


up


ACCESSORIES

   RCT-30A Infrared Remote Controller

   ASP-100 Auto Setup Probe

   SRC-400 Serial Remote Controller

   DR-960(T) Dual Rackmount Adaptor

   BP-960(T) Blank Panel

   AT-900 Tripod Mount Plate

   Dual Rackmout Adaptor combined with WFM(LEADER)

   WR-960A Dual Rackmout Adaptor combined with WFM(ASTRODESIGN)

   R-960C Dual Rackmout Adaptor combined with WFM (TEKTRONIX)

   MH-904 Hood

   STD-960(T) Stand

   GR-904 Grip

   BB-904V/A Battery Bracket V/A-mount

   PP-960 Protection Panel

   CC-960 Hard Carrying Case

   SO-016 Soft Carrying Case


up

RATINGS / PERFORMANCE HLM-960WR
DISPLAY PANEL
Type of Panel LCD/LED Blacklight
Number of Pixel 1920 x 1080
Display Size 9-inch
Brightness 400cd/m2
Contrast Radio (typical) 700:1
Display Color 16.77 million colors / 8-bit
View Angle (up & down, left & right typical) 178°
RATINGS & PERFORMANCE
Power Requirement AC: AC100 to 120V / AC200 to 240V DC: DC12V
Power Consumption (Max.) AC: 23W DC: 20W/1.6A
Dimensions (W x H x D) 222.4 x 173 x 69.5mm (8.8 x 6.8 x 2.8 inch)
Rack‐mountable Space 4U
Weight (excluding stand) 1.7kg (3.75lbs)
Supporting Format SDTV 480i / 59.94, 575i / 50
  HDTV :
1080i/50/59.94/60
1080p/23.98/24/25/29.97/30/50/59.94/60
1080psF/23.98/24/29.97/30
720p/23.98/24/25/29.97/30/50/59.94/60

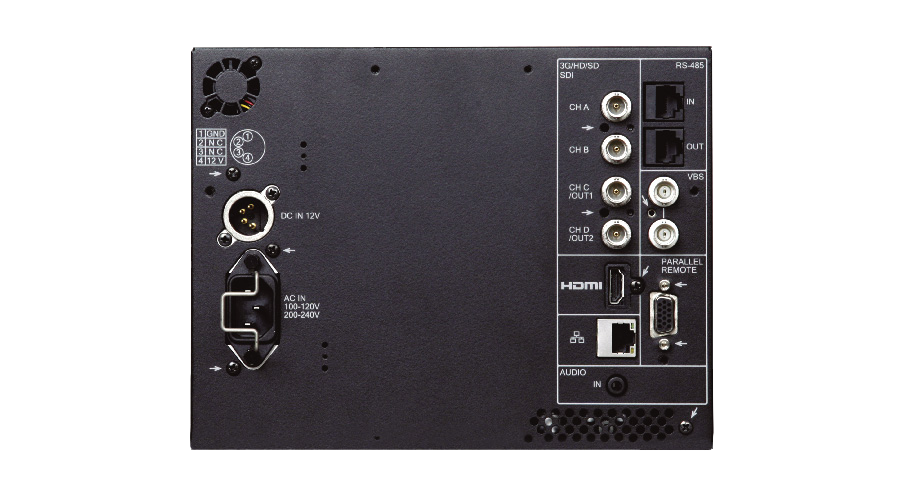

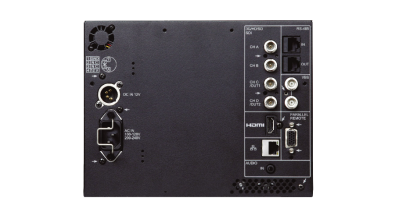

VIDEO
Input/Output 3G/HD/SD‐SDI
2 inputs / 2 output (loop through) or 4 inputs
  VBS 1
input / 1 output (loop through)
  HDMI
1 input
AUDIO
Input Analog Audio Input available as standard (stereo mini jack)
Display Embedded Audio Level Meter Display available as standard (8ch)
Speaker Rating Output: 350mW
Analog Audio Output: available as standard (Monaural)
Embedded Digital Audio Output: available as standard (Monaural)
5.1ch Surround Down‐mix Output available as standard
Headphone Output available as standard
