OCP-500
RATINGS


OCP-500

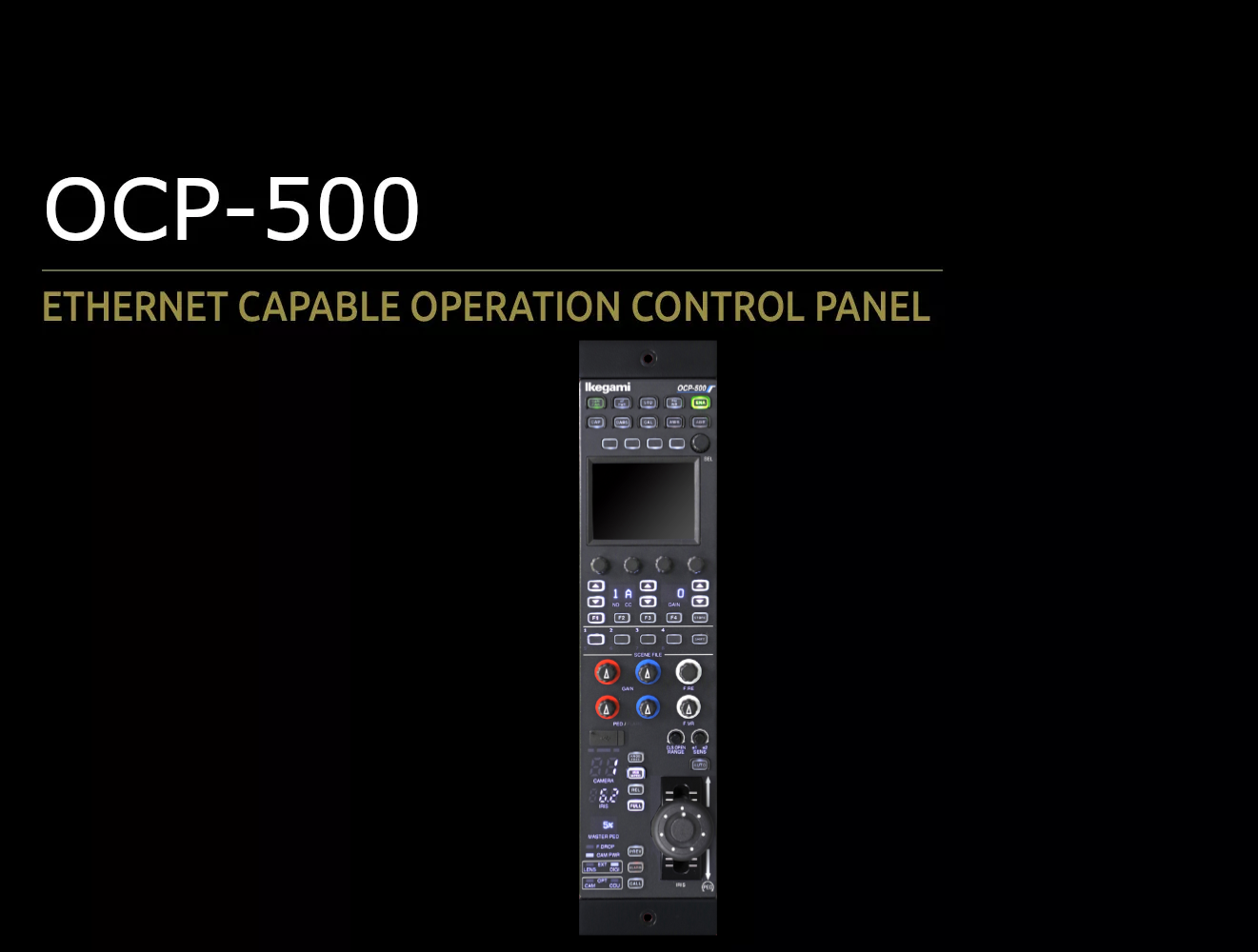

With a slim panel surface measuring just 82mm (3.23 inches) wide, the newly developed OCP-500 offers space-saving efficiency without compromising functionality.

  • New control Panel System

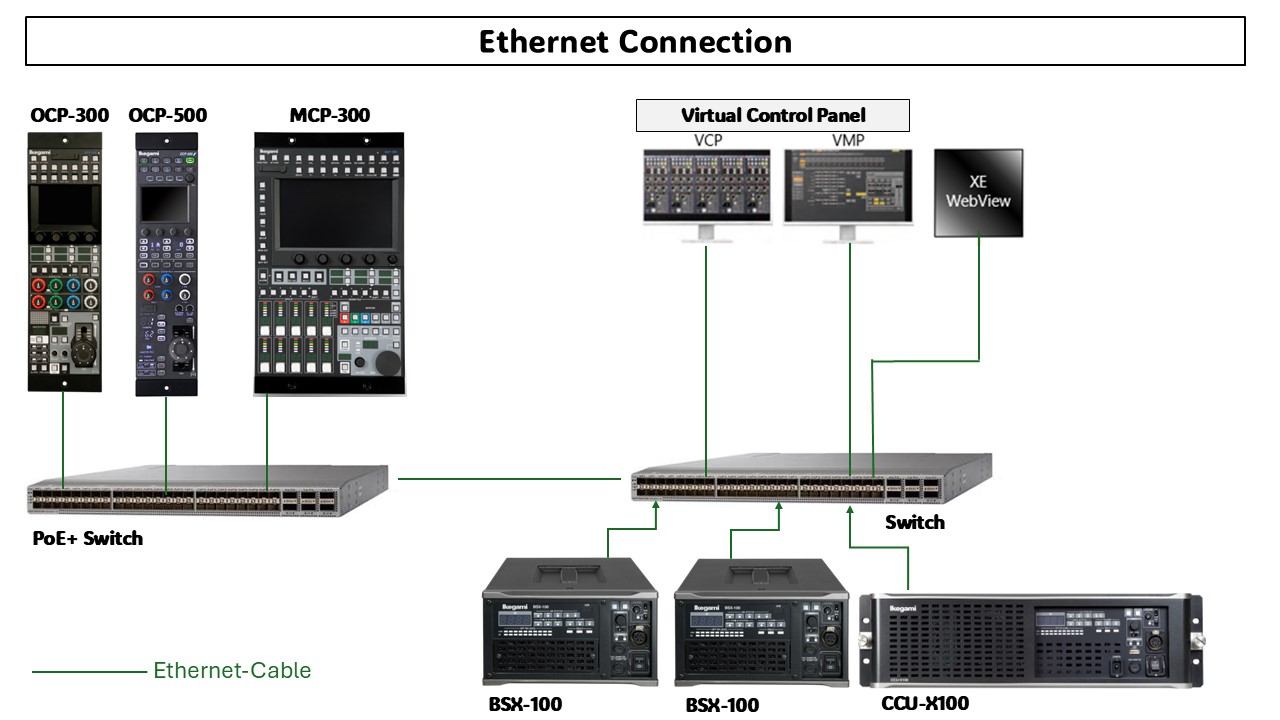

  • Ethernet / Arcnet / ICCP Multi-Network Control System

  • Supports up to 48 total Cameras (Option)
  • LCD Panel
  • POE + Support (require "POE+" HUB)

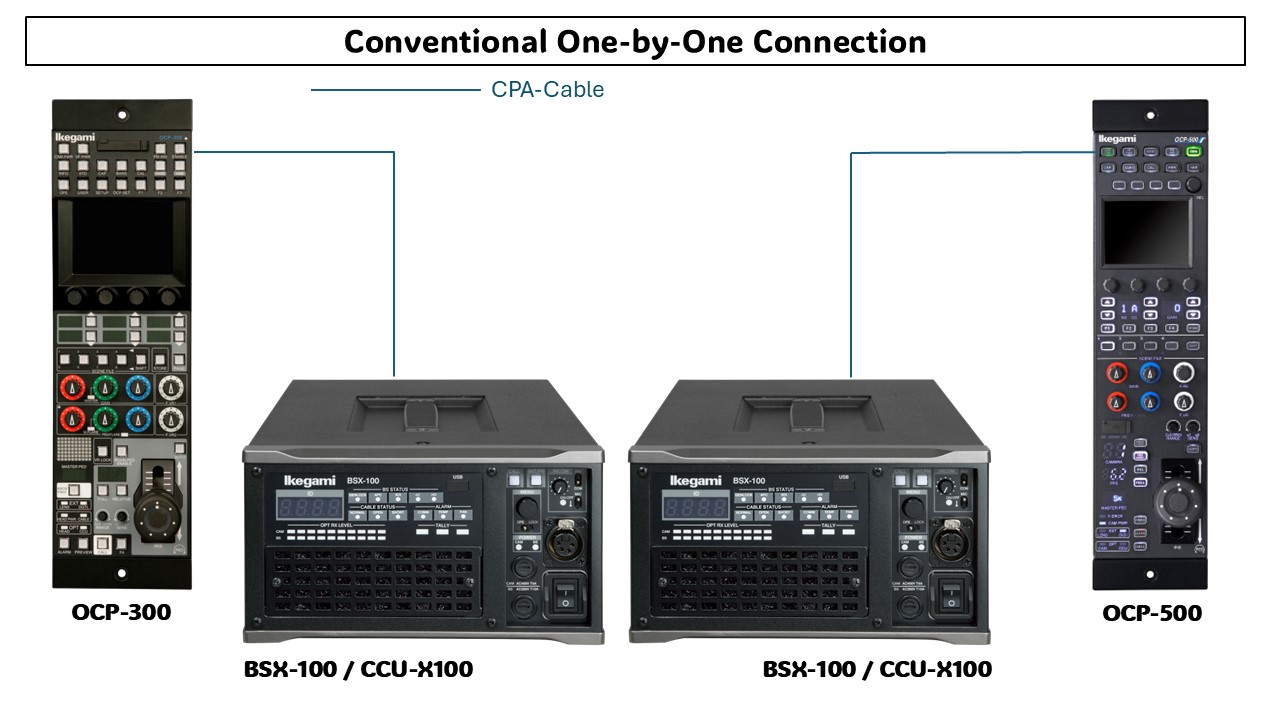

  • Can also be used for conventional One-by-One Camera Control



You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form



RELATED ITEMS


up

RATINGS / PERFORMANCE OCP-500
Power Requirement +12 V DC (+10 to +18 V DC)
Maximum Cable Length 60 m (CP cable, Serial control)
100m (Ethernet cable, PoE connection)
Ambient Temperature Operation: 0 to 45 °C
Storage: -25 to 60 °C
Ambient Humidity Operation: 30 to 90% *Non-condensation
Dimensions (Joystick Type) W 82 × H 354 × D129.2 mm
Dimensions (VR Type) W 82 × H 354 × D 82.6 mm
Weight Approx. 1.2 kg
