HDR (High Dynamic Range) Mode

The CCU-X100 supports HLG (Hybrid Log Gamma), conforming to ITU-R BT.2100 which is an international standard for HDR. It is now possible to expand the range represented from dark to bright, providing superb bright pictures with High Dynamic Range and rich colors with wide color gamut conforming to ITU-R BT.2020.

To expand possibilities of broadcasters and production companies, the CCU-X100 features a conversion function to simultaniously deliver HDR/BT.2020 and SDR/REC.709 signals (when operating in 4K/HD simultaneous output).

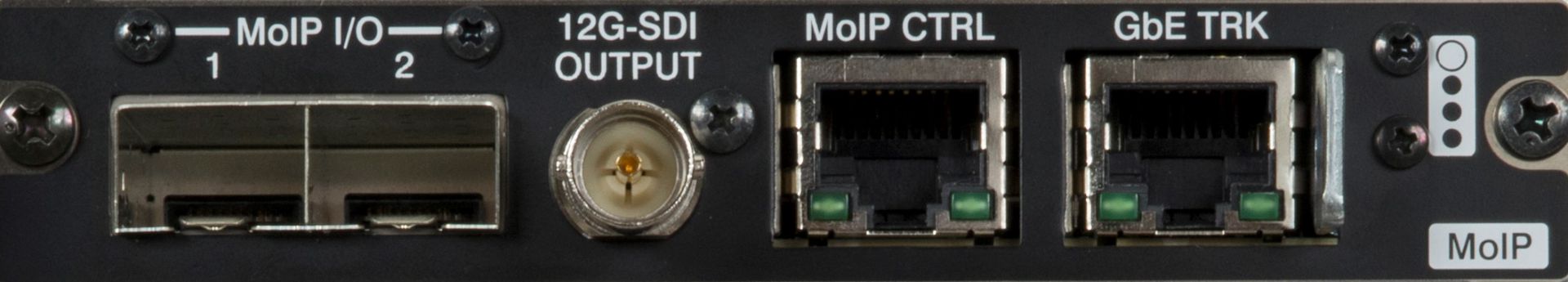

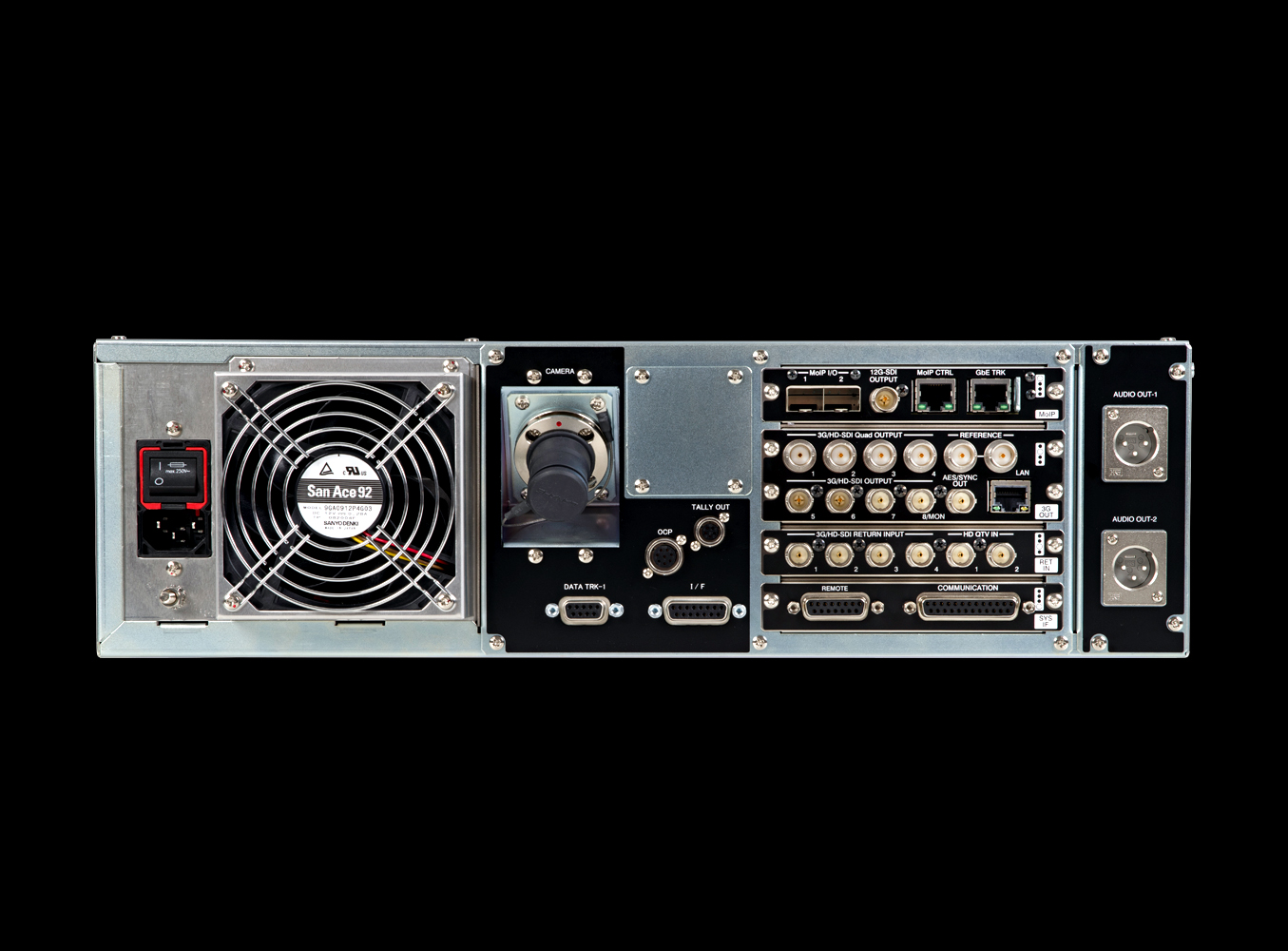

MoIP Interface (Option)

The CCU-X100 enables the transportation of separate video, audio, and metadata as independent IP multicast streams via an optional plug-in MoIP Unit, realizing more flexible system integration depending on the customer's system workflow. The unit supports uncompressed HD & 4K IP main output via 10GbE or 25GbE SFPs with low latency, providing superb picture quality. Moreover, redundancy is possible by using a 2nd SFP module (option), based on ST.2022-7. For fast and simple device connectivity, the CCU-X100 allows for dedicated “out of band” network communication in accordance with NMOS standards.

4K Upgrade Path (Option)

The CCU-X100 Camera Control Unit can provide 4K signal output while being used together with the HDK-99 3G-HDTV camera. This option is activated by a purchasable software key and enables the output of a 4K signal via 3G-SDI Quad-Link. Additionally a 4x SDI Output Board can be installed to extend the basestations' connectivity.
Transmission via MoIP standard SMPTE.2110 is easily possible.

* When 4K MoIP output is used a 25GbE SFP module is needed.

High Framerate Operation (Option)

When operating together with the UHK-X700 / UHK-X750, output of 2x speed in 4K resolution and 2x-8x speed in HD resolution is possible.

Supported formats:

2160P100/119.88
1080P100/119.88
1080I100/119.88
1080P150/179.82
1080I150/179.82
1080P200/239.76
1080I200/239.76
1080P300/359.64
1080I300/359.64
1080P400/479.52
1080I400/479.52

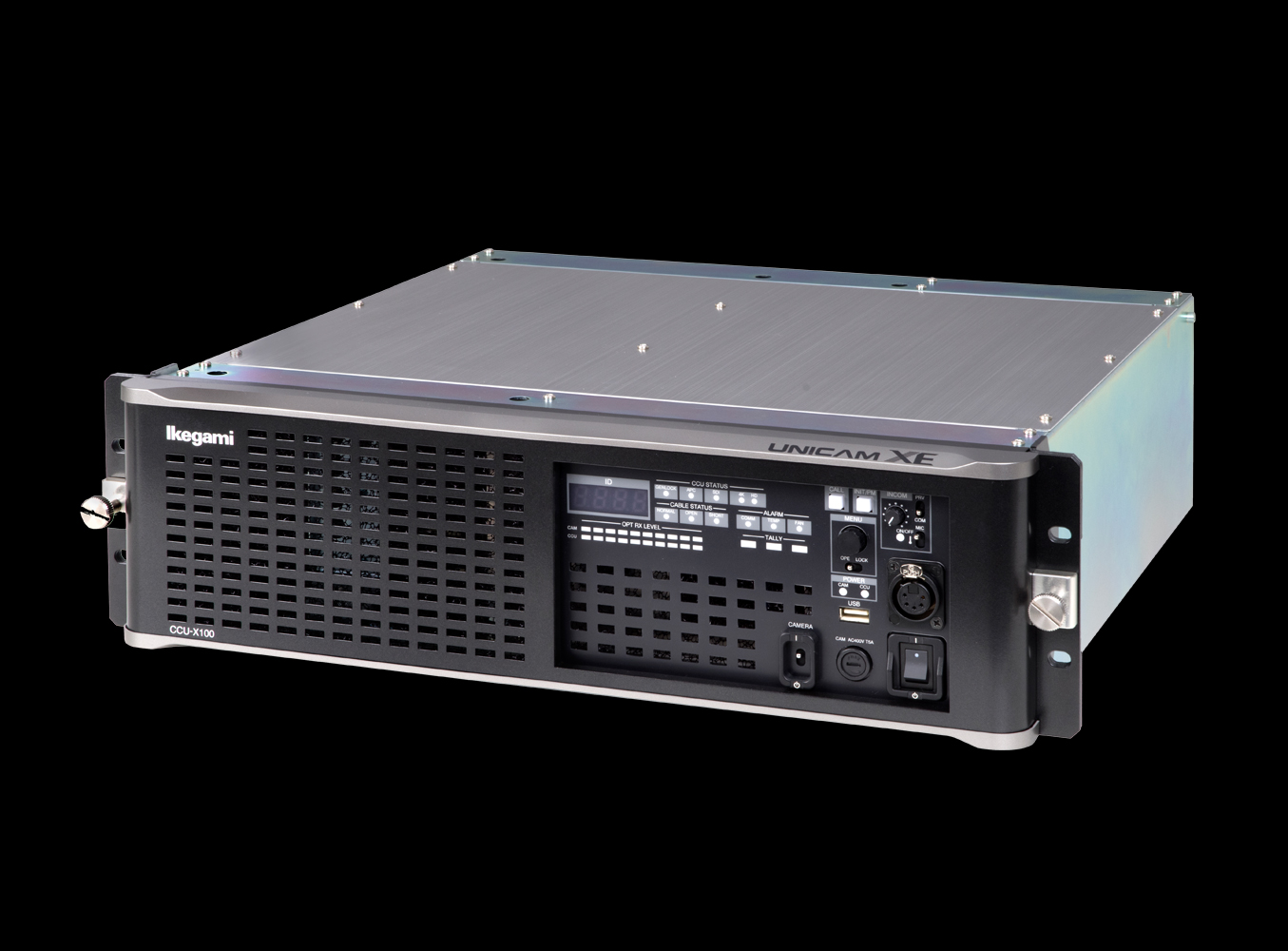

RATINGS / PERFORMANCE CCU-X100
Supporting Formats (CCU-X100 HD Type)	1080p (59.94 or 50Hz) YPbPr 4:2:2 1080i (59.94 or 50Hz) YPbPr 4:2:2 1080i (119.88 or 100Hz) YPbPr 4:2:2 1080p (29.97 or 25Hz) YPbPr 4:2:2 1080psF (29.97 or 25Hz) YPbPr 4:2:2 1080p (23.98Hz) YPbPr 4:2:2 1080psF (23.98Hz) YPbPr 4:2:2 720p (59.94 or 50Hz) YPbPr 4:2:2 ※ The camera head must be compatible with the corresponding format. Optional: 3840x2160 /59.94P 4:2:2(YCbCr) 3G-SDI 3G-QL 3840x2160 /50P 4:2:2(YCbCr) 3G-SDI 3G-QL ※ Supported with an optional 2K to 4K processing software key while operated with HDK-99
Supporting Formats (CCU-X100 4K Type)	3840x2160 /59.94P 4:2:2(YCbCr) 12G-SDI 3840x2160 /59.94P 4:2:2(YCbCr) 3G-SDI 3G-QL 3840x2160 /50P 4:2:2(YCbCr) 12G-SDI 3840x2160 /50P 4:2:2(YCbCr) 3G-SDI 3G-QL 1080p (59.94 or 50Hz) YPbPr 4:2:2 1080i (59.94 or 50Hz) YPbPr 4:2:2 1080i (119.88 or 100Hz) YPbPr 4:2:2 1080p (29.97 or 25Hz) YPbPr 4:2:2 (Option) 1080p (23.98Hz) YPbPr 4:2:2 (Option) 720p (59.94 or 50Hz) YPbPr 4:2:2 Optional: 2160P100/119.88 1080P100/119.88 1080I100/119.88 1080P150/179.82 1080I150/179.82 1080P200/239.76 1080I200/239.76 1080P300/359.64 1080I300/359.64 1080P400/479.52 1080I400/479.52

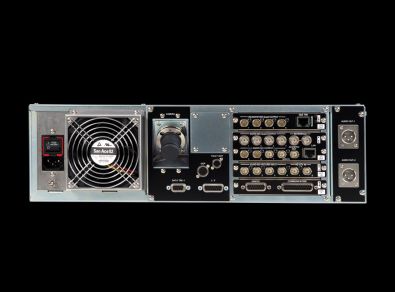

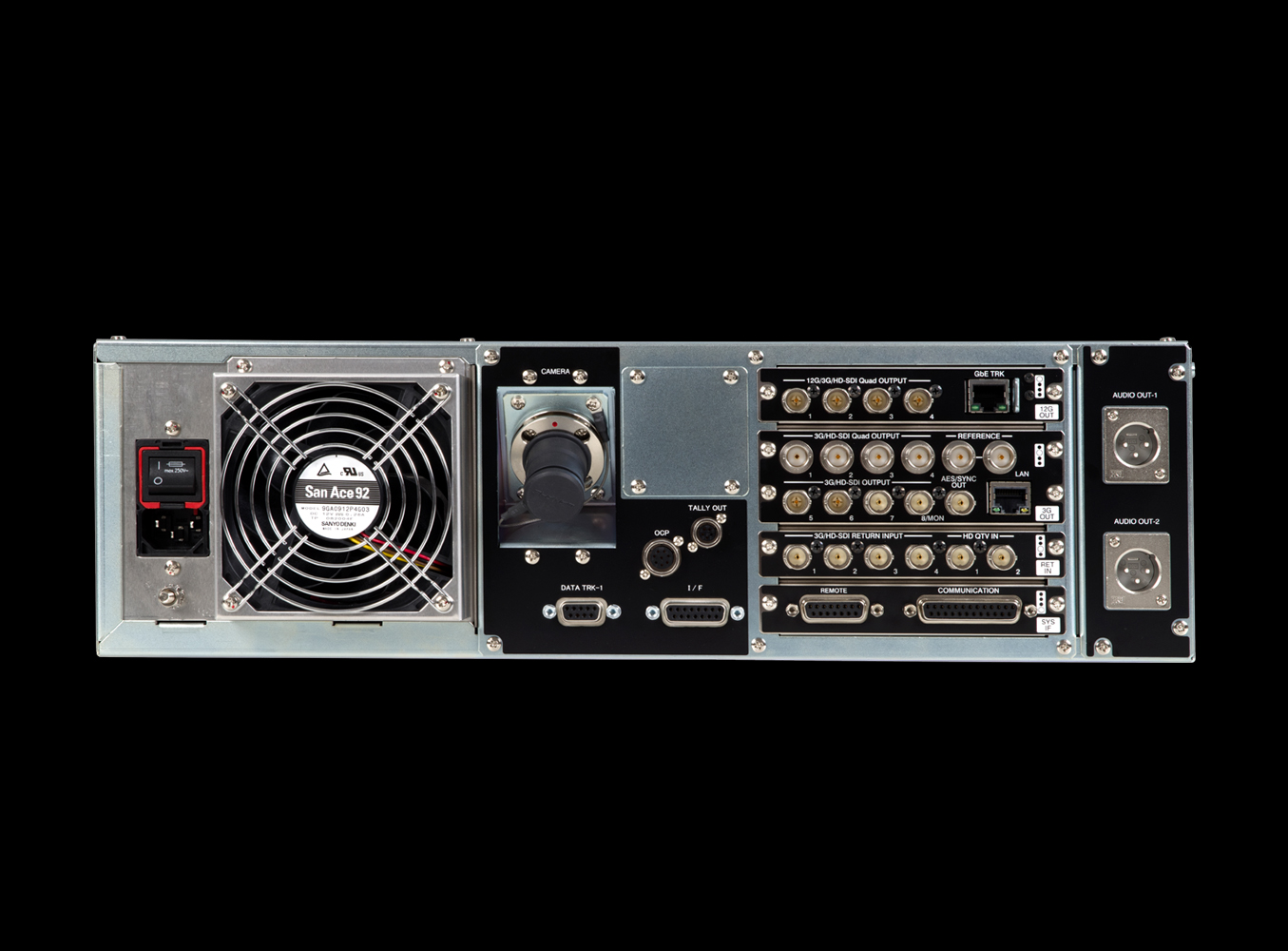

Input Signals
External Sync Signal	Tri SYNC SMPTE274M/BB(VBS) x2ch (Loop Through)
Return Video Signal	3G/HD-SDI BNC x4ch * When 3G-SDI signal is input for return video signal, it is converted to HD-SDI (1.5G) signal in the Camera Control Unit to transmit to the camera head.
Q-TV Signal (CCU-X100 HD Type)	3G/HD-SDI BNC x1ch Input 3G/HD-SDI BNC x1ch Active Loop-Through * When 3G-SDI signal is input for QTV signal, it is converted to HD-SDI (1.5G) signal in the Camera Control Unit to transmit to the camera head.
Q-TV Signal (CCU-X100 4K Type)	3G/HD-SDI BNC x2ch Input or 3G/HD-SDI BNC x1ch Input, x1ch Active Loop-Through * When 3G-SDI signal is input for QTV signal, it is converted to HD-SDI (1.5G) signal in the Camera Control Unit to transmit to the camera head. Optional: 12G-SDI BNC x1ch Input (Shared)
MoIP Signal(Option) * Supported with an optional plug-in MoIP Unit	SMPTE ST.2110 NMOS (SFP IN)
Data Trunk	Signal RS-422 x 2ch
Gigabit Ethernet Trunk	LAN RJ-45 (1000BASE-T) ※ Only with UHK-X700 / UHK-X750
Intercom(ENG/PROD)	4-wire or Clearcom or RTS
4-wire	0dBm 600 ohm x2ch
Clearcom	-15dBs 200 ohm x2ch
RTS	0dBs 200 ohm x2ch
PGM (Program Sound)	0dBs 600 ohm/10k ohm switchable x3ch
Tally	R/G/Y x3ch MAKE/POWER selectable

Output Signals
12G-Output Port	12G-SDI 75 ohm BNC x 4ch SMPTE ST2082, SMPTE 425M, SMPTE 372M, SMPTE292M compliance ※ Standard for CCU-X100 4K Type ※ Optional for CCU-X100 HD Type (Limited to HD-/3G-SDI (Quad Link) Output)
3G/HD-SDI Signal Main / Trunk Video Port	3G/HD-SDI 75 ohm BNC x 4ch (Main Line) 3G/HD-SDI 75 ohm BNC x 3ch (Main Line / HD-Trunk) 3G/HD-SDI 75 ohm BNC x 1ch (PM) SMPTE 425M, SMPTE 372M, SMPTE292M compliance ※Only HD-SDI signal is available for Trunk Video channel with Unicam HD cameras.
MoIP Signal (Option) * Supported with an optional plug-in MoIP Unit	SMPTE ST.2110 NMOS (SFP OUT)
Data Trunk Signal	RS-422 x 2ch
Phase Reference Signal	Tri-Sync(0.6Vp-p) x1ch
Intercom(ENG/PROD)	4-wire or Clearcom or RTS
4-wire	0dBm 600 ohm x2ch
Clearcom	-15dBs 200 ohm x2ch
RTS	0dBs 200 ohm x2ch
MIC	0dBs x2ch Low impedance / Digital Audio (AES/EBU)
Tally	R/G/Y x3ch
Dimensions	W 482.6 × H 132.6 × D 398 mm (W 19.0 × H 5.2 × D 15.7 in)
Weight	approx. 17kg
Ambient Temperature	0℃ to +40℃ (Operation) -30℃ to +60℃ (Storage)
Relative Humidity	30% to 90% (Non-condensing)
Operating Voltage	AC100/117/220/234V ±10%
Maximum Cable Distance	4.000 m
